Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: A00-432-262-450
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
A00-432-262-450 |
Cross&Datasheet: |
LPJEF123XDNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
A00-432-262-450 |
Cross&Datasheet: |
LPJEF123XDNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

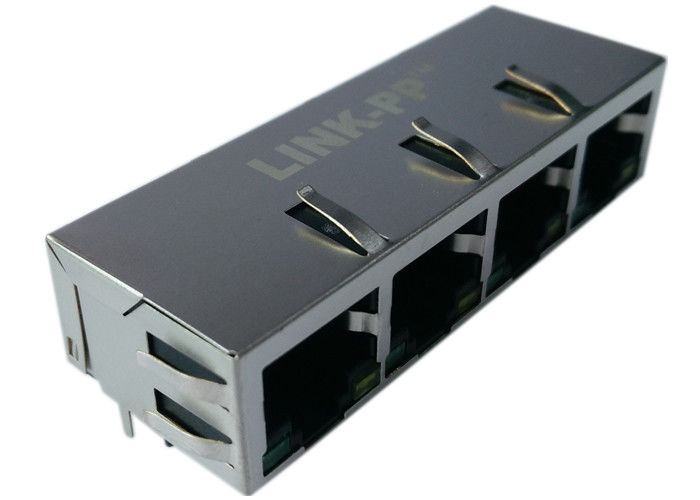

| Shielded 1x4 Port RJ45 Magjack Connector with 2.5G Base-T Integrated Magnetics , Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM14A1-805-BA-CW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDs |
| Latch | TAB Down |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 2.327 |
| Package Width (mm) | 59.10 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 2.5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
