ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic

China ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic supplier
ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic supplier ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic supplier

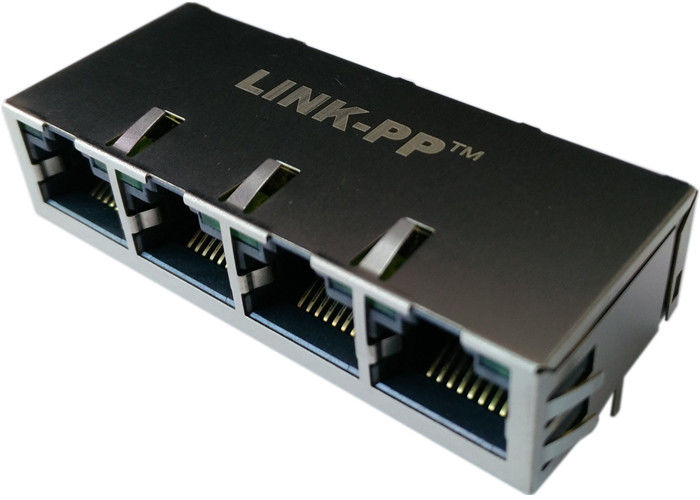

Large Image :  ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: ARJM14A3-805-BA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2000 / 5K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: ARJM14A3-805-BA-CW2 Application: HUB, PC Card, Switch, Router Etc
Port: 1X4 Multi-port RJ45 Files: PDF/3D/ISG/Stp/Step/Datasheet
LEDs: Green/Yellow Speed: No Magnetic

ARJM14A3-805-BA-CW2 Multi - Port RJ45 1X4 Tab Down With 2.5G Magnetic


Quick Details

  • Stacked 1x4 Tab-up No Magnetic jack
  • Shielded  2.5G RJ45 Modular Jack
  • Router, PC Mainboard, SDH, PDH
  • LED optional , EMI-finger Optional
Description:



Shielded 1x4 Port RJ45 Magjack Connector with 2.5G Base-T Integrated Magnetics , Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM14A3-805-AB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 2.327
Package Width (mm) 59.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
