ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T

China ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T supplier
ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T supplier ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T supplier

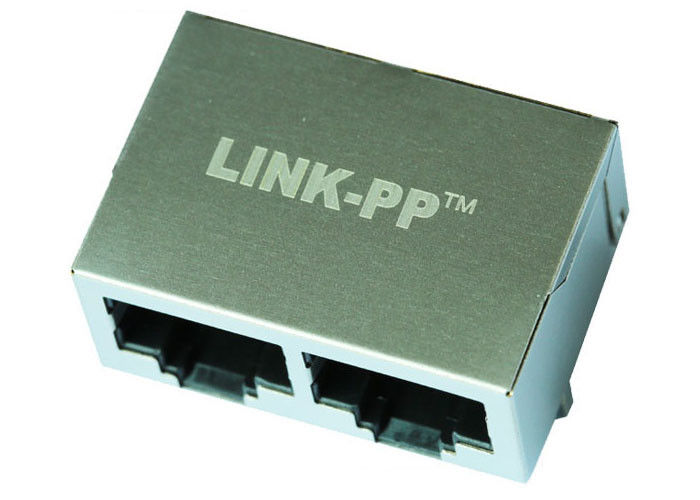

Large Image :  ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM12A2-811-NN-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 1000
Price: Supportive
Packaging Details: 60 pcs/ tray,22 tray /carton/37*30*30 cm, 10 KGS/1320 pcs/ carton
Delivery Time: Stock or 5 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: ARJM12A2-811-NN-EW2 Cross: LPJXXXXNL
Category: Rj45 1x2 Ethernet Connector Mounting: THT On PCB
Orientation: 90~ Angle (Right) Shielding: Shielded, EMI Finger

ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

Description
Shielded 1x2 Port 8P8C RJ45 Female Connector with 5G Base-T Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A2-811-NN-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 5G Base-T, AutoMDIX
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Ethernet Applications
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Famous Customer
Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......
ARJM12A2-811-NN-EW2 Multi-port Rj45 1x2 Ethernet Connector Dual Port 5G Base-T

Other Part Number
ARJM21A1-811-NN-EW2
ARJM12A1-811-AA-EW2
ARJM12A1-811-AB-EW2
ARJM12A1-811-BA-EW2
ARJM12A1-811-BB-EW2
ARJM12A2-811-AA-EW2
ARJM12A2-811-AB-EW2
ARJM12A2-811-BA-EW2
ARJM12A2-811-BB-EW2
ARJM21A1-811-AA-EW2
ARJM21A1-811-AB-EW2
ARJM21A1-811-BA-EW2
ARJM21A1-811-BB-EW2
ARJM22A1-A12-NN-CW2
ARJM22A1-A12-AA-CW2
ARJM22A1-A12-AB-CW2
ARJM22A1-A12-BA-CW2
