Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM12A1-805-AB-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
ARJM12A1-805-AB-EW2 |
Part No: |
LPJxxxxNL |
Ethernet: |
1x2 2.5G Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Specification: |
ARJM12A1-805-AB-EW2 |
Part No: |
LPJxxxxNL |
Ethernet: |
1x2 2.5G Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |

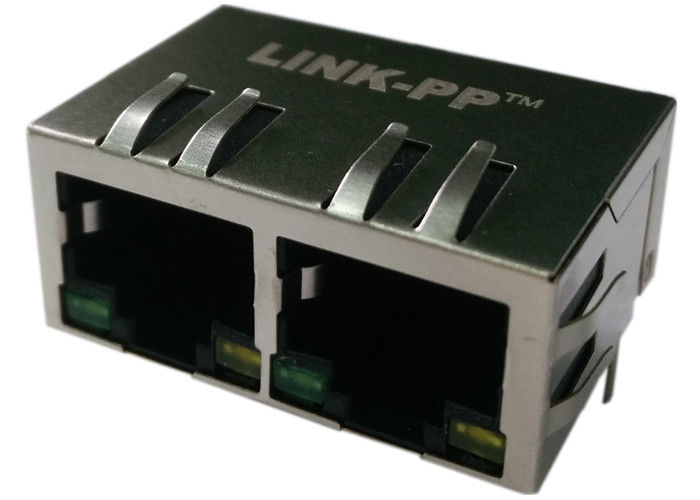

| 1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM12A1-805-AB-EW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow LEDs |
| Latch | TAB Down |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.230 |
| Package Width (mm) | 31.24 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 2.5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
