ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED

China ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED supplier
ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED supplier ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED supplier

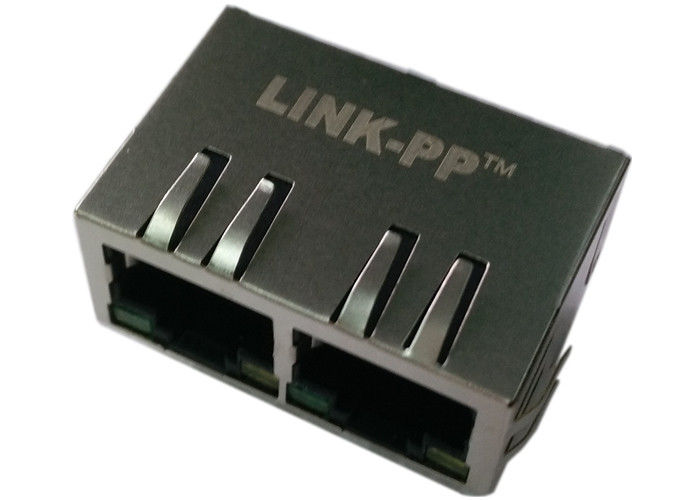

Large Image :  ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM12A1-805-BB-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/1000 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: ARJM12A1-805-BB-EW2 Samples: Active&Available
Category: Multi-port RJ45 Port: 1x2
Made In China: LPJXXXXNL LED Color: YELLOW / YELLOW

ARJM12A1-805-BB-EW2 1X2 Port Rj45 8P8C 2.5G Base - T Lan Jack Shield W / LED



1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Yellow/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-805-BB-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

1. RJ-45 connector integrated with Filter
2. 1X4 Port RJ-45 connector 8P8C
3. Reduce EMI radiation, Improve EMI performance
4. High performance for maximum EMI suppression.
5. ISO9001,SGS,UL,CE,REACH
6. Embedded mini PCI express Cellular modemfrom SierraWireless

RJE73-188-00110 Single Port Low Profile RJ45 Connector  Without Magnetic LPJE169BDNL
Company profile :

LINK-PP Established in 1997,is worldwide leader in magnetic telecom,networking components and optical transceiver modules design and manufacturing. With an extensive line of state-of-the-art catalog products as well as custom capabilities, LINK-PP is a global supplier magnetic telecom,networking components and Optical Transceiver Modules,the OEM and ODM are welcome.



LINK-PP,there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.

Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.



FAQ

Q: Are you trading company or manufacturer ?

A:We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight..

Q: What is your terms of payment ?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
