Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM12A2-805-AA-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Product Name: |
ARJM12A2-805-AA-EW2 |
RJ45 Connector: |
1x2 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
SDH, PDH, IP Phone, XDSL Modem |
Product Name: |
ARJM12A2-805-AA-EW2 |
RJ45 Connector: |
1x2 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
SDH, PDH, IP Phone, XDSL Modem |
Quick Details
1. stacked RJ45 connector
2. RJ45 Jack with magnetic modules
3. Shielded RJ45 Modular Jack
4. Router, PC Mainboard, SDH, PDH
5. File : PDF/3D/ISG/Stp/Step/Datasheet
6. Samples : Free Available

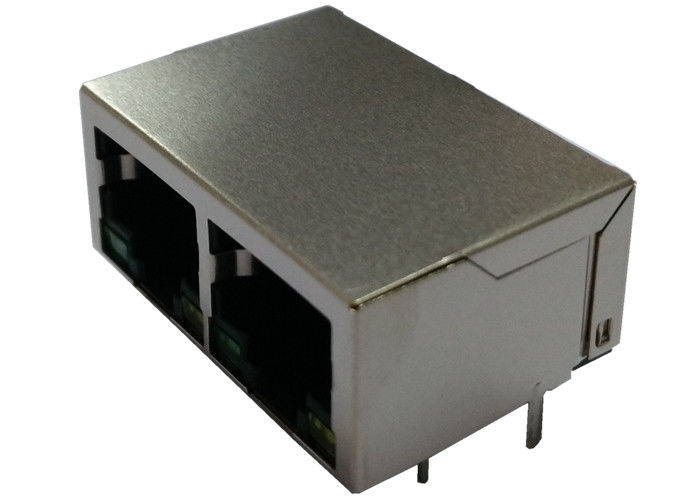

| 1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Green/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM12A2-805-AA-EW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Green LEDs |
| Latch | TAB Down |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.230 |
| Package Width (mm) | 31.24 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | 2.5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Description:
2X4 RJ45 Magjack without leds, meeting IEEE 802.3af/at
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 2 x 4
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
