ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down

China ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down supplier
ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down supplier ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down supplier

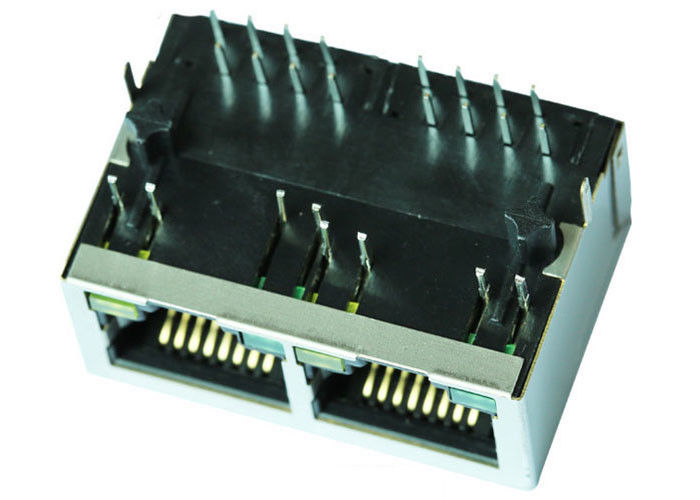

Large Image :  ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM12A2-805-BB-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000/5K
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Spec: ARJM12A2-805-BB-EW2 I/O: 1X2 2.5G Base-Tx
Mounting: Through Hole PCB Indicator: YELLOW/YELLOW LED
Termination: Solder-Wave

ARJM12A2-805-BB-EW2 Ethernet Rj45 MagJack 2.5G BaseT , 1X2, Y/Y, Tab Down



1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Yellow/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A2-805-BB-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 2.5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



1 Designed for network interface card application.
2 Designed to meet IEEE802.3u requirement.
3 Available in all turn ratios used by LAN ICmanufactures.
4 Simplest magnetic component to place androute on PCB.
5 Conserves minimizing PCB space.
6 2.5G Magnetics Rj45
7 Rj45 integrated magnetics
8 LED optional , EMI-finger Optional
