ARJM21A1-805-AA-EW2 Stacked RJ45 MagJacks 2x1 Integrated Transformer 2.5G

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM21A1-805-AA-EW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

shielded rj45 plugs

Spec:
ARJM21A1-805-AA-EW2
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
ARJM21A1-805-AA-EW2
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet

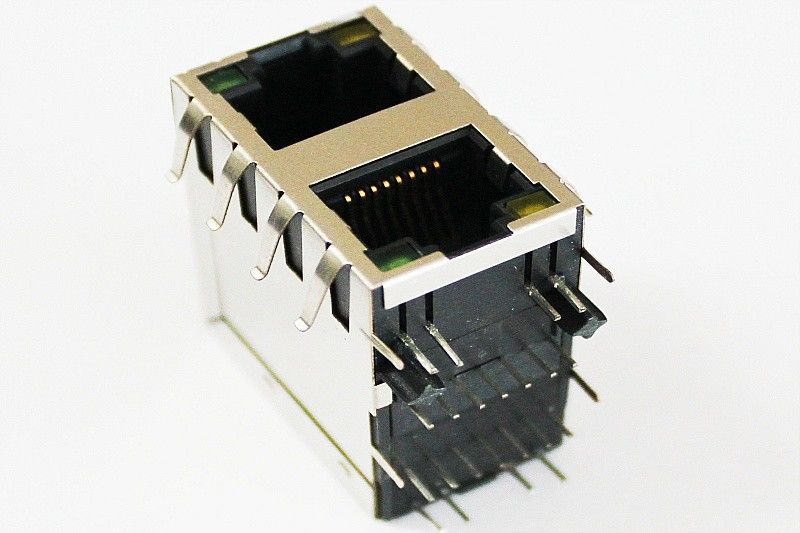

ARJM21A1-805-AA-EW2 Stacked RJ45 MagJacks 2x1 Integrated Transformer 2.5G
ARJM21A1-805-AA-EW2 Stacked RJ45 MagJacks 2x1 Integrated Transformer 2.5G

Description:
2X1 Ethernet RJ45 Connector with 2.5G Base-T Magnetics, Green/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-805-AA-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 2.5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



FAQ

Q: Are you trading company or manufacturer ?

A:We are factory.

Q: How long is your delivery time?

A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight..

Q: What is your terms of payment ?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
