ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps

China ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps supplier
ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps supplier ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps supplier

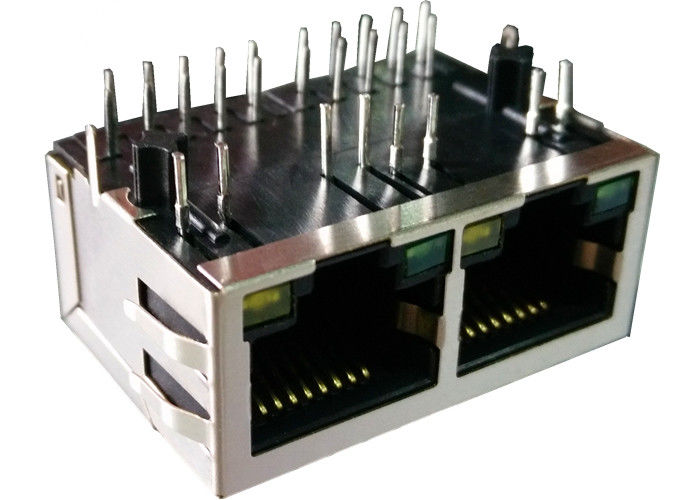

Large Image :  ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM12A1-811-AA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specification: ARJM12A1-811-AA-CW2 Part No: LPJxxxxxxNL
Ethernet: 2x 2.5G Mounting: Right Angle
Indicators: LEDs Samples: Available

ARJM12A1-811-AA-CW2 Rj45 1x2 Dual Port Magnetics Ethernet Jack 2.5G Mbps
  1. LINK-PP Four Port Filter Rj-45
  2. Cross Equivalent to ARJM12A1-811-AA-CW2 ABRACON Jack
  3. Rj45 1X2 2.5GBase-T Ethernet Filtered Jack With LED Indicators
  4. Rj45 With Integrated Magnetics Industry standard
  5. Fully IEEE803.2 Compliant over entire temperature range 0°C to +70°C
1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-811-AA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
