ARJM12A1-811-AB-CW2 Multi - port RJ45 1X2 Tab Down 5G Base-T Shielded

China ARJM12A1-811-AB-CW2 Multi - port  RJ45 1X2 Tab Down 5G Base-T Shielded supplier
ARJM12A1-811-AB-CW2 Multi - port  RJ45 1X2 Tab Down 5G Base-T Shielded supplier ARJM12A1-811-AB-CW2 Multi - port  RJ45 1X2 Tab Down 5G Base-T Shielded supplier

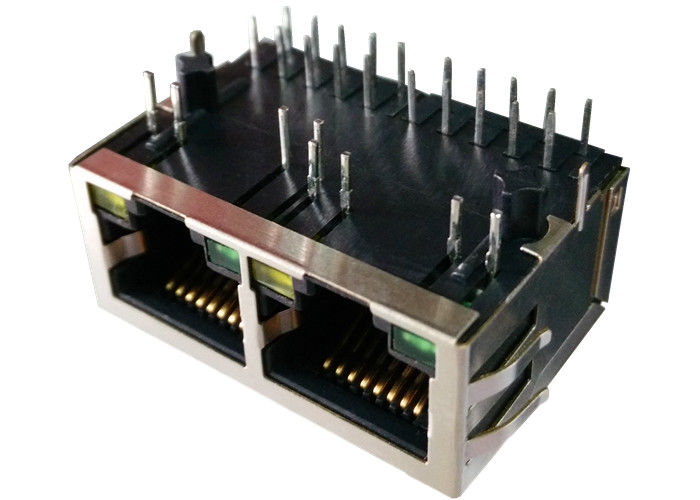

Large Image :  ARJM12A1-811-AB-CW2 Multi - port RJ45 1X2 Tab Down 5G Base-T Shielded

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: ARJM12A1-811-AB-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2000 / 5K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: ARJM12A1-811-AB-CW2 Equivalent: LPJxxxxxxNL
Magnetic: 5G Base-T Integrated Application: HUB, PC Card, Switch, Router Etc
Files: 3D Step IGS PDF Datasheet Port: 1X2 Multi-port RJ45

ARJM12A1-811-AB-CW2 Multi - port RJ45 1X2 Tab Down 5G Base-T Shielded

1. Stacked 1x2 Tab-up Magnetic jack ARJM12A1-811-AB-CW2
2. Shielded  RJ45 Modular Jack
3. Router, PC Mainboard, SDH, PDH
4. 5G Base - T Ethernet
5. LED optional , EMI-finger Optional

Description:
1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-811-AB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:
Development Board
Embedded Board
Digital Camera DVB
Wireless Smart Camera Network

Competitive Advantage:
20 years production experience,
1200 staff,
100% test
Flexible delivery time


Product Details


  • 10/100 Base-T LPJ0011DNL LINK-PP rj45 Without LEDs

  • Compatible to 1X1 Tab-down J00-0014NL

  • Through hole Rj45 Modular Jack With Magnetics21.3mm length

  • RJ45 Magjack 10/100Base-T Magnetics , With(out) LEDs,(un)Shielded

Why LINK-PP shall be your partner
. Reliability and durability
. Rapid design and delivery
. Reliable and honest partnership

1. LINK-PP provides a variety of reliable modular plugs and Jacks for high speed and stable input/output of information.
2. Many of our modular plugs and Jacks are both shielded and non-shielded; Different configuration options for 6Pin, 8Pin, 10Pin circuits.
3. These connectors provide effective solutions for consumer, medical, industrial, and data communications and high-speed network applications.
ARJM12A1-811-AB-CW2 Multi - port  RJ45 1X2 Tab Down 5G Base-T Shielded
FAQ
1. Can you provide samples?
Yes,Samples are free if we have stock,but you should pay the freight charge.
2. Do you accept OEM or ODM projects?
Yes.Every year,we do lots of OEM items for our customers,we are good at it.
3. How can i get your price list?
Please send me an email,We will reply within 1 days.
4. Can we carve our own brand on the product?
Yes,If the quantury sufficient.
5. How long is your delivery time?
In stock:3-5days
Not in stock: depends on your QTY.
