Home > products > RJ45 Multi Port Jack > ARJM21A1-811-AA-CW2 Stacked RJ45 MOD JACK 2x1 Shielded Without Magnetics

ARJM21A1-811-AA-CW2 Stacked RJ45 MOD JACK 2x1 Shielded Without Magnetics

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM21A1-811-AA-CW

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Spec:
ARJM21A1-811-AA-CW
Family:
2x1 Stacked RJ45
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Category:
Stacked RJ45
File:
PDF/3D/Step/IGS/Price/Cross
Spec:
ARJM21A1-811-AA-CW
Family:
2x1 Stacked RJ45
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Category:
Stacked RJ45
File:
PDF/3D/Step/IGS/Price/Cross
ARJM21A1-811-AA-CW2 Stacked RJ45 MOD JACK 2x1 Shielded Without Magnetics
ARJM21A1-811-AA-CW2 Stacked RJ45 MOD JACK 2x1 Shielded Without Magnetics


Product parameters:

2X1 Ethernet RJ45 Connector without Integrated Magnetics, Green/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-811-AA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

20 years production experience,
1100 staff,
100% test
Flexible delivery time

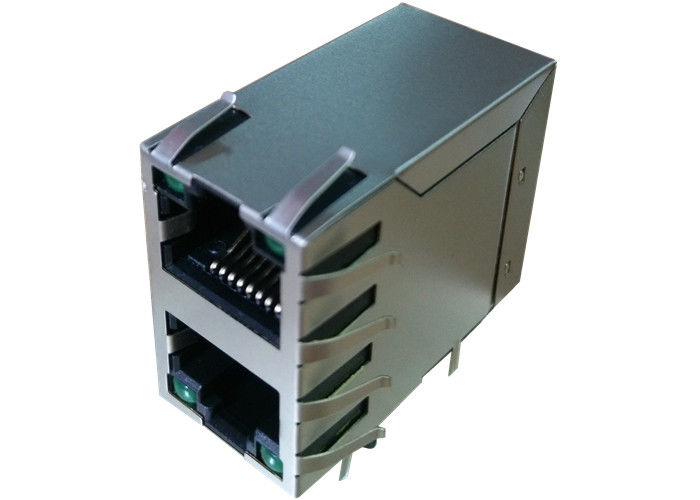

ARJM21A1-811-AA-CW2 Stacked RJ45 MOD JACK 2x1 Shielded Without Magnetics 0



FAQ
1. Can you provide samples?
Yes,Samples are free if we have stock,but you should pay the freight charge.
2. Do you accept OEM or ODM projects?
Yes.Every year,we do lots of OEM items for our customers,we are good at it.
3. How can i get your price list?
Please send me an email,We will reply within 1 days.
4. Can we carve our own brand on the product?
Yes,If the quantury sufficient.
5. How long is your delivery time?
In stock:3-5days
Not in stock: depends on your QTY.
