ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics

China ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics supplier
ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics supplier ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics supplier

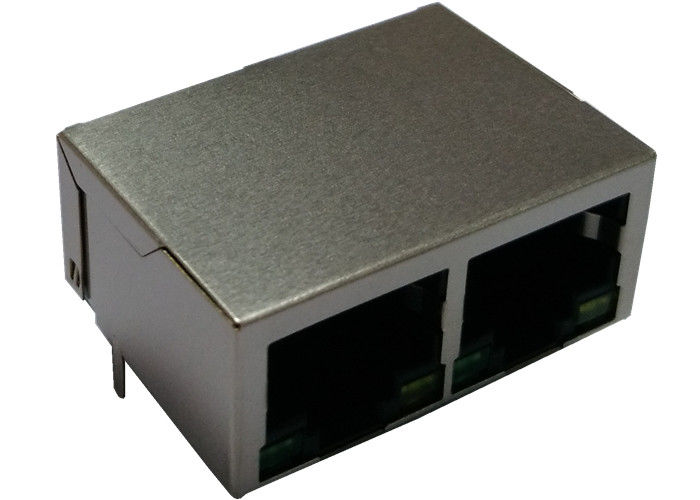

Large Image :  ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM12A2-811-AA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000/5K
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Spec: ARJM12A2-811-AA-CW2 I/O: 1X2 5G Base-Tx
Mounting: Through Hole PCB Indicator: GREEN/GREEN LED
Termination: Solder-Wave

ARJM12A2-811-AA-CW2 1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Magnetics



1x2 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A2-811-AA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT





Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



RJE73-188-00110 Single Port Low Profile RJ45 Connector  Without Magnetic LPJE169BDNL



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



FAQ
1. Can you provide samples?
Yes,Samples are free if we have stock,but you should pay the freight charge.
2. Do you accept OEM or ODM projects?
Yes.Every year,we do lots of OEM items for our customers,we are good at it.
3. How can i get your price list?
Please send me an email,We will reply within 1 days.
4. Can we carve our own brand on the product?
Yes,If the quantury sufficient.
5. How long is your delivery time?
In stock:3-5days
Not in stock: depends on your QTY.
