ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics

China ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics supplier
ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics supplier ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics supplier

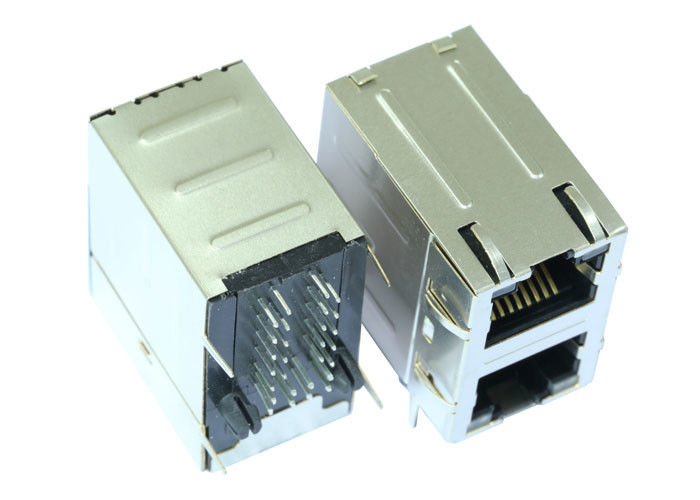

Large Image :  ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: ARJM21A1-811-BA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 5000
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: ARJM21A1-811-BA-CW2 Family: 2x1 Stacked RJ45
Application: HUB, PC Card, Switch, Router Etc Mounting: Side Entry (Right Angle)
Category: Stacked RJ45 File: PDF/3D/Step/IGS/Price/Cross

ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics


Product parameters:

2X1 Ethernet RJ45 Connector without Integrated Magnetics, Yellow/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-811-BA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Our Services



OEM/ODM Capability

Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.

OEM services encompass buyers logo or label, designs services plus a whole after sales support package.



Customer Satisfaction:

Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.



Payment Terms:

There are many payment methods available such as D/A, D/P, T/T and Paypal.



22 Years Experience

Our company since 1997 RJ45 network connector production in the past 22 years,only focus on RJ45 network connector design and development and production and sales.

ARJM21A1-811-BA-CW2 2X1 Ethernet RJ45 Connector without Integrated Magnetics

FAQ

Q: How long Delivery time ?



A: RJ45/RJ11 Series: 12~20 days



SFP Series: 25~30 Days USB Series: 7~15 days



Connector: 7~15 days



Q: How can I get quotation?



A:It is helpful for us to recommend the right item if we know your detail requirements



(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).



Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



Q: Can I have samples?



A: Samples are available for evaluation.



Q: Is OEM & ODM available?



A: OEM&ODM are welcome.
