Home > products > QSFP Cage > ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED

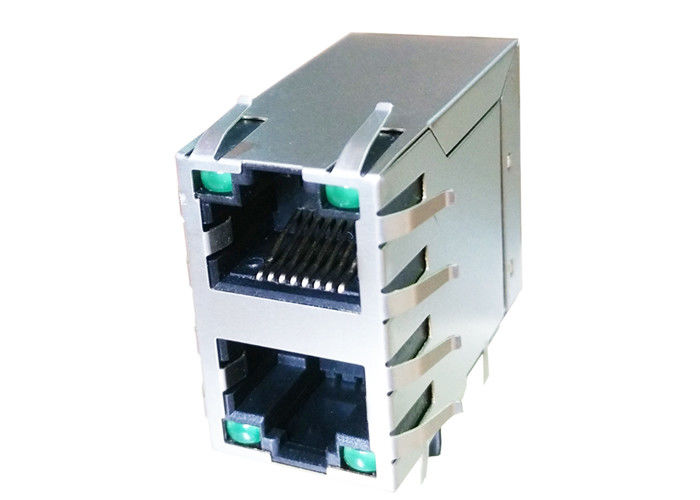

ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM21A1-811-BB-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Spec:
ARJM21A1-811-BB-CW2
Equivalent:
LPJXXXXXNL
Ethernet:
2x1
Files:
3D STEP IGS PDF Datasheet
LED:
Yellow - Yellow
Sample:
Free
Spec:
ARJM21A1-811-BB-CW2
Equivalent:
LPJXXXXXNL
Ethernet:
2x1
Files:
3D STEP IGS PDF Datasheet
LED:
Yellow - Yellow
Sample:
Free
ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED
ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED



2X1 Ethernet RJ45 Connector without Integrated Magnetics, Yellow/Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-811-BB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Our Customers :


Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.

ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED 0


Intel

LINK-PP Is the preferred supplier of Intel.

LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.

ARJM21A1-811-BB-CW2 Stacked 2X1 RJ45 Female Connector Yellow/Yellow LED 1
Cisco

LINK-PP Is the preferred supplier of Cisco.

LINK-PP LPJ0011DNL is used in gate way of Cisco. Jabil is the OEM for this project.

Siemens

LINK-PP Is the preferred supplier of Siemens.

LINK-PP LP6096ANL is used in medical equipment of Siemens.

Flextronics is the OEM for this project.

Samsung

LINK-PP is the preferred supplier of Samsung.

LINK-PP LPJ0011BBNL is used in smart box of Samsung.

Jabil is the OEM for this project.



FAQ

Q: How long Delivery time ?



A: RJ45/RJ11 Series: 12~20 days



SFP Series: 25~30 Days USB Series: 7~15 days



Connector: 7~15 days



Q: How can I get quotation?



A:It is helpful for us to recommend the right item if we know your detail requirements



(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).



Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



Q: Can I have samples?



A: Samples are available for evaluation.



Q: Is OEM & ODM available?



A: OEM&ODM are welcome.
