ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T

China ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T supplier
ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T supplier ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T supplier

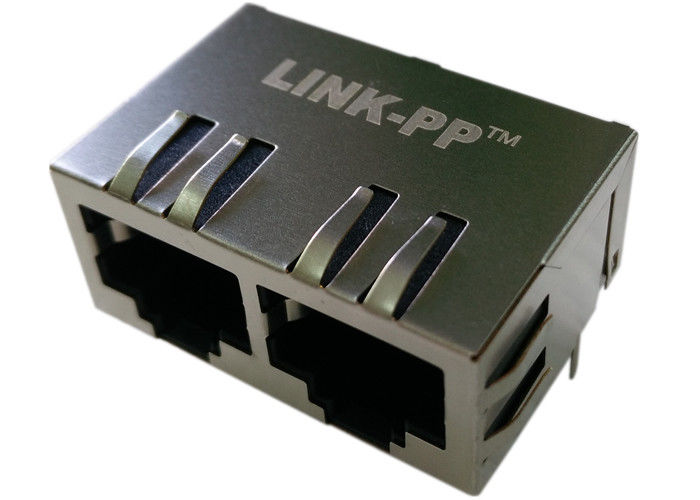

Large Image :  ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: ARJM12A1-805-NN-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: ARJM12A1-805-NN-CW2 Pin To Pin: LPJxxxxxxNL
Gender: Female,Receptacle LEDs: Without
RJ45 Connector: 1 X 2 Port Muti-port,Custom File: PDF/3D/ISG/Stp/Step/Datasheet

ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T



Shielded 1x2 Port 8P8C RJ45 Female Connector with 2.5G Base-T Integrated Magnetics,without LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-805-NN-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T, AutoMDIX
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years

ARJM12A1-805-NN-CW2 1x2 Side Entry Multi-port RJ45 Connector With 2.5G Base-T

Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

•The Company Standard Is Defect-Free Products And Services


Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy


FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer since 1997.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from
small order.
3.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
4.What is your delivery time?
Usually within 2-3 working days
5.What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
6.Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
