Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM12A2-805-NN-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
ARJM12A2-805-NN-CW2 |
Pin To Pin: |
LPJXXXXNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 2 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
ARJM12A2-805-NN-CW2 |
Pin To Pin: |
LPJXXXXNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 2 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

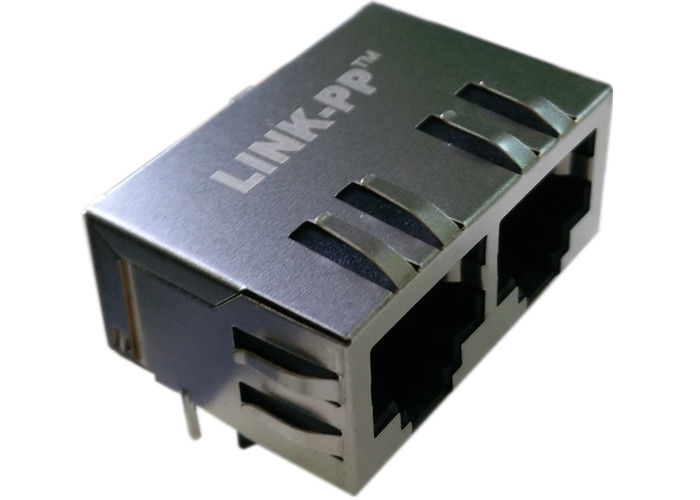

Shielded 1x2 Port 8P8C RJ45 Female Connector with 2.5G Base-T Integrated Magnetics,without LED,Tab Down,RoHS | |
LINK-PP Part Number | LPJGxxxxNL |
Abracon LLC Part Number | ARJM12A2-805-NN-CW2 |
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 8 |
Diodes | NO DIODES |
LED Option | without LEDs |
Latch | TAB Down |
Number of Ports | 1X2 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 0.535 |
Package Height (mm) | 13.60 |
Package Length (Inches) | 0.839 |
Package Length (mm) | 21.30 |
Package Width (Inches) | 1.230 |
Package Width (mm) | 31.24 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | Without |
Speed | 2.5G Base-T, AutoMDIX |
Temperature | 0°C ~ 70°C |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
Packaging & Shipping
1. any items want to order. Please contact us. And confirm the order details and lead time.
2. Terms of Shipment:
Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.
3. Shipping Companies: We support shipment by "HK post" "China post" "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF"”, if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help
4.Packing could be PE bag or Blister Card, depend on what product you ordered
