ARJM12A1-805-AB-CW2 Dual Port Gigabit Rj45 Mag Jack Shield With 2.5G Base - T

China ARJM12A1-805-AB-CW2 Dual Port Gigabit Rj45 Mag Jack Shield With 2.5G Base - T supplier

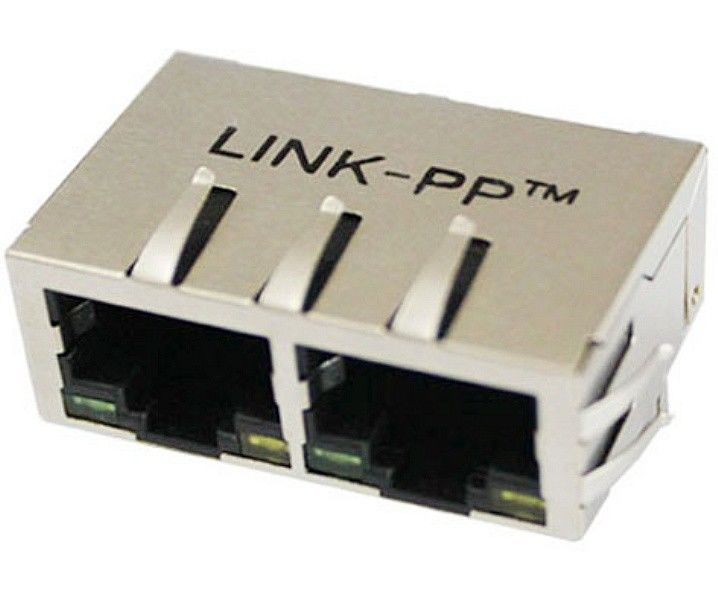

Large Image :  ARJM12A1-805-AB-CW2 Dual Port Gigabit Rj45 Mag Jack Shield With 2.5G Base - T

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM12A1-805-AB-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: ARJM12A1-805-AB-CW2 Cross&Datasheet: LPJXXXXXNL
Apllication: 2.5Gigabit Four PORT Rj45 Original Munafactuer: LINK-PP
Project Application: NETWORK INTERFACE CARD File: PDF/3D/ISG/Stp/Step/Datasheet


ARJM12A1-805-AB-CW2 Dual Port Gigabit Rj45 Mag Jack Shield With 2.5G Base - T

1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-805-AB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
