ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M

China ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M supplier
ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M supplier ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M supplier

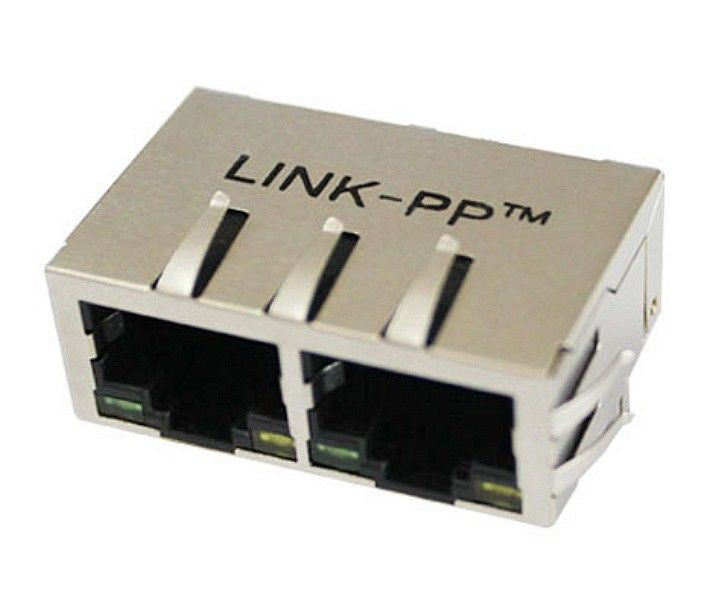

Large Image :  ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: ARJM12A1-805-BB-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Product Name: Multi-port RJ45 Modular Jacks RJ45 Connector: 1 X 2 Port Muti-port,Custom
Plating: Gold Or Tin Plate,OEM Gender: Female,Receptacle
Application: PCB,networking And Communication Equipments Base: 5G

ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M

Description:



1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Yellow/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A1-805-BB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



ARJM12A1-805-BB-CW2 Multi-port RJ45 Connectors For Switch Router 1x2 2.5G M



Applications:



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time



FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
