ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket

China ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket supplier
ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket supplier ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket supplier

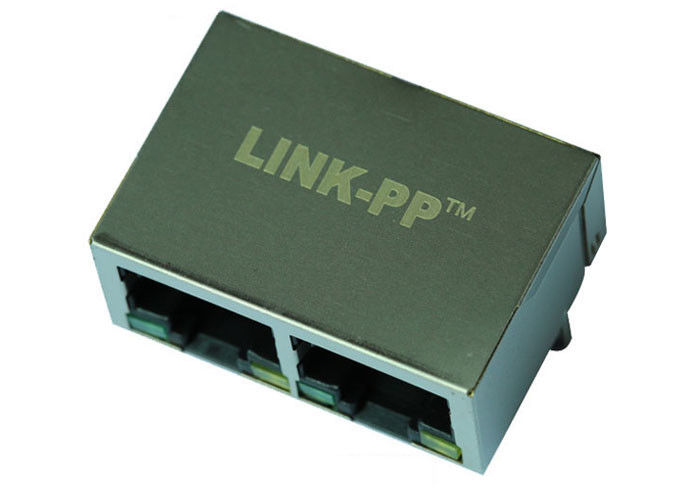

Large Image :  ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: ARJM12A2-805-BA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1000
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: ARJM12A2-805-BA-CW2 P.N Made: LPJxxxxxNL
Category: Multi-port RJ45 Port: 1x2
Samples: Free LED: YELLOW / GREEN

ARJM12A2-805-BA-CW2 Multi-Port 1X2 2.5G BASE-TX Filtered Connector Rj45 Socket



1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated Magnetics, Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM12A2-805-BA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Green LEDs
Latch TAB Down
Number of Ports 1X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



FAQ:

Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, PayPal.

Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
