ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T

China ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T supplier
ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T supplier ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T supplier

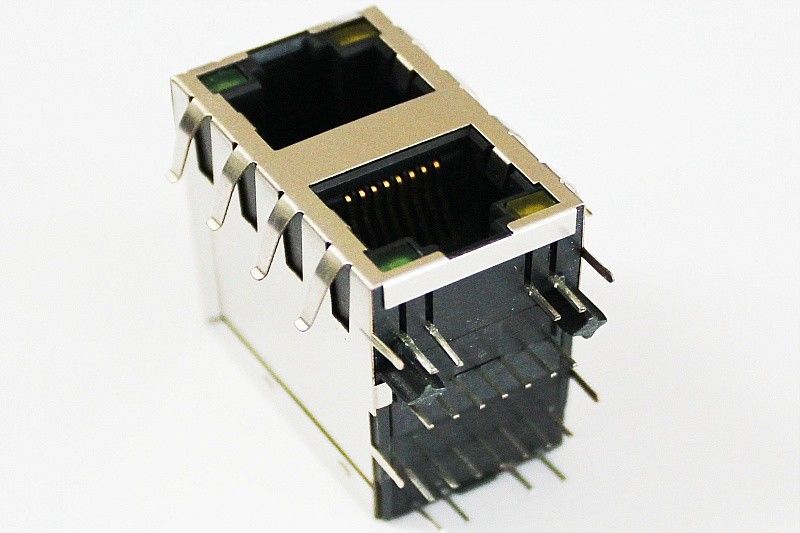

Large Image :  ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: ARJM21A1-805-AA-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 100/1000/10K
Price: Supportive
Packaging Details: Tray
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item No: ARJM21A1-805-AA-CW2 Conn: Rj45 Female
Port: 2x1 Application: HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation: Through Hole Cross Rf: LPJxxxxNL

ARJM21A1-805-AA-CW2 2X1 Port 8P8C RJ45 Female Connector with 2.5G Base-T

2X1 Ethernet RJ45 Connector with 2.5G Base-T Magnetics, Green/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-805-AA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer since 1998.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4.What is your delivery time?

Usually within 2-3 working days

5.What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
