ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics

China ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics supplier
ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics supplier ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics supplier

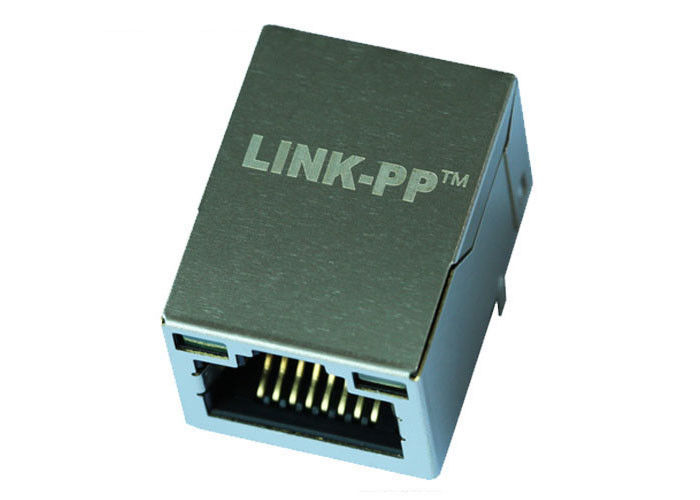

Large Image :  ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM11D7-811-KB-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Features: Board Lock Specifications: ARJM11D7-811-KB-EW2
Schematic: 8 Coils, 1CT:1CT,1CT:1CT LEDs: Green&Orange/Yellow
Samples: Available Port: Single

ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics

1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics, Green&Orange/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11D7-811-KB-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Orange/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.543
Package Height (mm) 13.80
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 5G Base-T, AutoMDIX
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

ARJM11D7-811-KB-EW2 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics


Product Warranty



1. Guarantees 100% compliance CE,Rohs

2. Lenth:Custom.

3. Molded-strain relief construction for flexible movement, durability, and fit.

4. Reduces cross talk and interference with aluminum undermold contacts



Packaging & Shipping



1. any items want to order. Please contact us. And confirm the order details and lead time.

2. Terms of Shipment:

Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.

3. Shipping Companies: We support shipment by "HK post" "China post" "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF"”, if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help

4.Packing could be PE bag or Blister Card, depend on what product you ordered



Our Services



1. OEM/EDM service

2. Fast delivery

3. Most of the payment are accepted

4. Design and produce goods according to clinet's requirement.


Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,
100% test
Flexible delivery time
