Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: SS64100-042F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
SS64100-042F |
P/N: |
LPJE900DNL |
Schematic: |
4 Coils, 1CT:1CT |
Mechanical: |
20.30x15.90x13.40mm |
LEDs: |
Optional |
Samples: |
Available |
Specification: |
SS64100-042F |
P/N: |
LPJE900DNL |
Schematic: |
4 Coils, 1CT:1CT |
Mechanical: |
20.30x15.90x13.40mm |
LEDs: |
Optional |
Samples: |
Available |

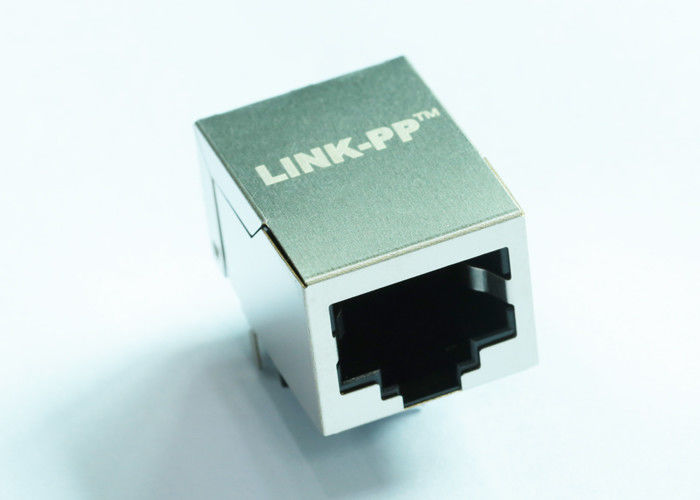

| 10P10C 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE900DNL |
| Other Part Number | SS64100-042F |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.528 |
| Package Height (mm) | 13.40 |
| Package Length (Inches) | 0.799 |
| Package Length (mm) | 20.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | RJ45 Without Magnetics |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
