LPJ4012GDNL RJ45 Single Port With 10/100Mbps Right Angle Shield W/LED HR913128CE

China LPJ4012GDNL RJ45 Single Port With 10/100Mbps Right Angle Shield W/LED HR913128CE supplier
LPJ4012GDNL RJ45 Single Port With 10/100Mbps Right Angle Shield W/LED HR913128CE supplier LPJ4012GDNL RJ45 Single Port With 10/100Mbps Right Angle Shield W/LED HR913128CE supplier

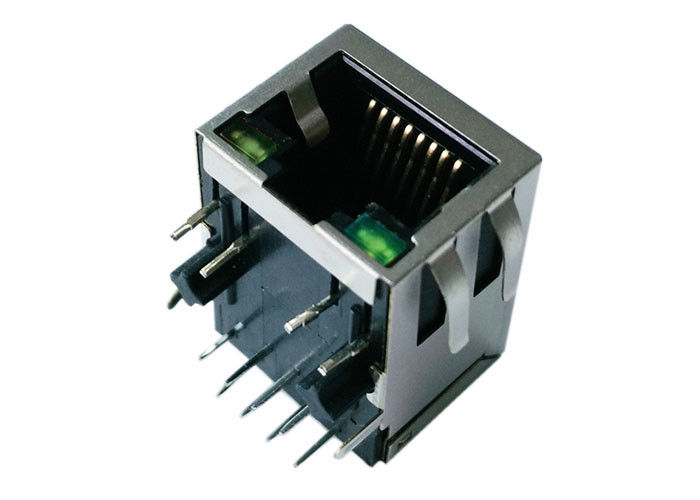

Large Image :  LPJ4012GDNL RJ45 Single Port With 10/100Mbps Right Angle Shield W/LED HR913128CE

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: HR913128CE

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive&Discount
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: HR913128CE Part No: LPJ4012GDNL
Ethernet: 10/100Mbps Turn Ratio: 1CT:1CT
Mounting: Right Angle 90 Degree Samples: Available

LPJ4012GDNL Single Port RJ45 With 10/100Mbps Right Angle Shield W/LED HR913128CE
  • LPJ4012GDNL Rj45 PCB Connector
  • 10/100Mbps Ethernet Port
  • Lan Connectors Rj45 With Led Activity
  • Fast Jack Rj45 Latch-down Model
Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJ4012GDNL
Hanrun Part Number HR913128CE
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes YES
LED Option Yellow/Green
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
