LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432

China LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432 supplier
LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432 supplier LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432 supplier

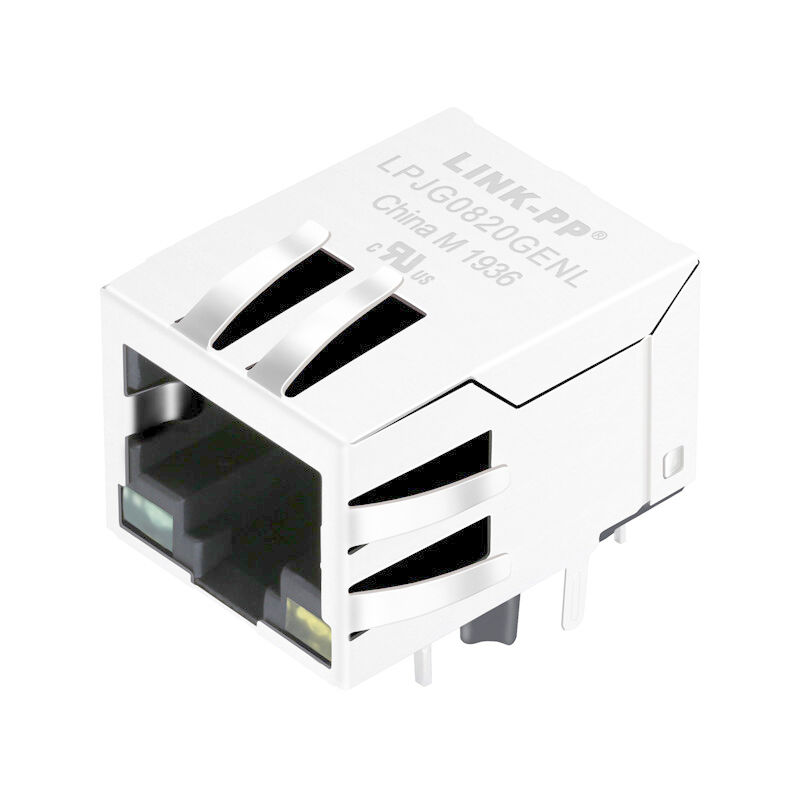

Large Image :  LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: A60-113-331P432

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Part Number: A60-113-331P432 Made In China: LPJG0820GENL
Family: Magnetic Rj45 Interface: 100/1000Mbps
Original Munafactuer: LINK-PP Samples: Free Available

LPJG0820GENL 1000Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432



Single Port RJ45 Magnetics Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0820GENL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 21.30
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432



LPJG0820GENL 1000 Base-T Magnetic RJ45 Jack Shield W/LED A60-113-331P432


Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

Packing

1.Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2.We can do the packing according to the customer's requirement, but the price is different.

Shipping:

By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost

Product Lines

Now has 20 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.

FAQ

Q:Can I have samples for testing quality?

A:Yes,you can huy some samples of any our products for testing quality and market

Q:What is delivery time if we place an order?

A:it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for more QTY.order,let’s confirm when you place offical order.

Q:Do you accept OEM/ODM?

A:We Support OEM/ODM Service:pls don’t hesitate to tell us your ideas

Q:Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q:Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to hold quality assurance.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods in time and after-sales services departments will promise that try our best to solve all problem within 24 hours..
