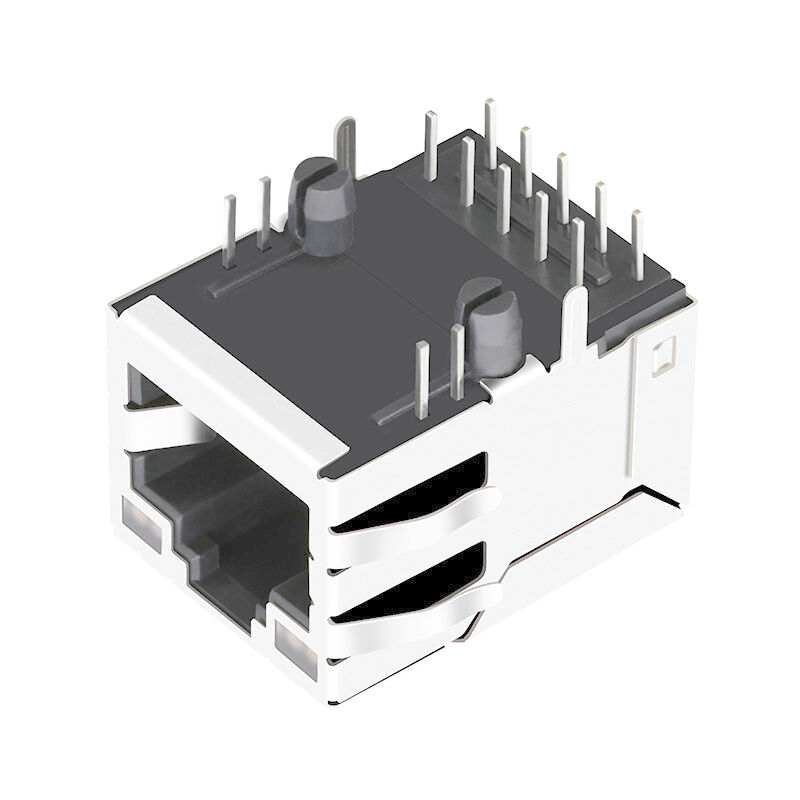

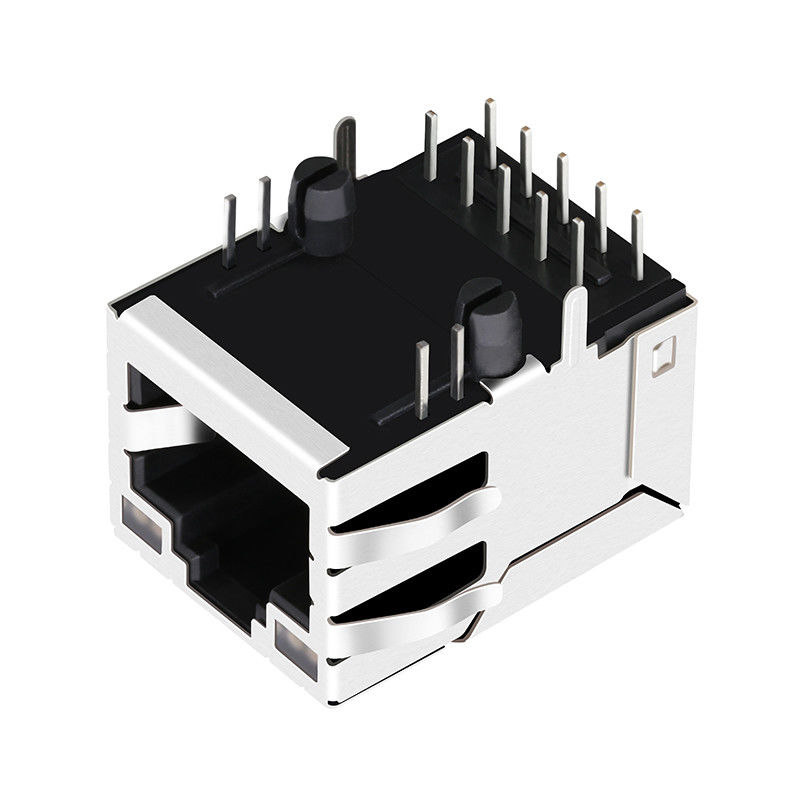

RB1-1Q6BAM1A Gigabit Industrial RJ45 Connector LPJG16314A4NL Female Gender

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL, ROHS, Reach ISO

Model Number: RB1-1Q6BAM1A (LPJG16314A4NL)

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

LPJG16314A4NL 1000Base T Connector

,

IEEE 802.3 Gigabit RJ45 Connector

,

LPJG16314A4NL Female RJ45 Connector

Connector Type:
Gigabit RJ45 Connector
Latch:
Tab Up
Gender:
Female
Integrated Magnetics:
Yes
LED Option:
With
Operating Temperature:
0℃~70℃
Connector Type:
Gigabit RJ45 Connector
Latch:
Tab Up
Gender:
Female
Integrated Magnetics:
Yes
LED Option:
With
Operating Temperature:
0℃~70℃
RB1-1Q6BAM1A Gigabit Industrial RJ45 Connector LPJG16314A4NL Female Gender

LPJG16314A4NL RJ45 Female Connector with 1000 Base-T Integrated Magnetics

Electrical Specifications of LPJG16314A4NL @25℃:



1. Impedance: 100 ohms
2. OCL: 350uH Min @100KHz,0.1Vrms,8mADC BIAS
3. Turns Ratio: 1:1
4. Insertion Loss: 0.5-100MHz: -1.1dB Max
5. Return Loss (dB Min):
0.5-40MHz: -18
40.1-100MHz: -12-20L0G (f/50)
6. Crosstalk (dB Min):
0.5-40MHz: -35
40.1-100MHz: -33-20L0G (f/50)
7. Common Mode Rejection Ratio: 0.5-100MHz: -30dB Min
8. Isolation Voltage: 1500Vrms Min

Parameters of 1000Base T Connector:



Products LPJG16314A4NL Female RJ45 Connector with LED
Data Rate 10/100/1000 BASE-T
Number of Ports 1X1 Single Port
PCB Mount Angle SIDE ENTRY
Pin Type THT Solder
LED Color GREEN&YELLOW/GREEN&YELLOW
Integrated Magnetics With
RoHS Compliant YES-RoHS
Specification Meets IEEE 802.3 specification
Operating Temperature Range 0℃~+70℃
Free Sample Available
Housing Materials Thermoplastic PBT+30%G.F UL94V-0
Contact Materials  Phosphor Bronze C5210R-EH Thickness=0.35mm
Pins Materials Brass C2680R-H Thickness=0.35mm f
Shield Materials SUS 201-1/2H Thickness=0.2mm
Contact Plating Materials Gold 6 micro-inches min. In contact area.
