HR915350C Tab Up Modular Jacks RJ45 10 Pin Shielded With LEDs LPJG16515A4NL

China HR915350C Tab Up Modular Jacks RJ45 10 Pin Shielded With LEDs LPJG16515A4NL supplier
HR915350C Tab Up Modular Jacks RJ45 10 Pin Shielded With LEDs LPJG16515A4NL supplier HR915350C Tab Up Modular Jacks RJ45 10 Pin Shielded With LEDs LPJG16515A4NL supplier

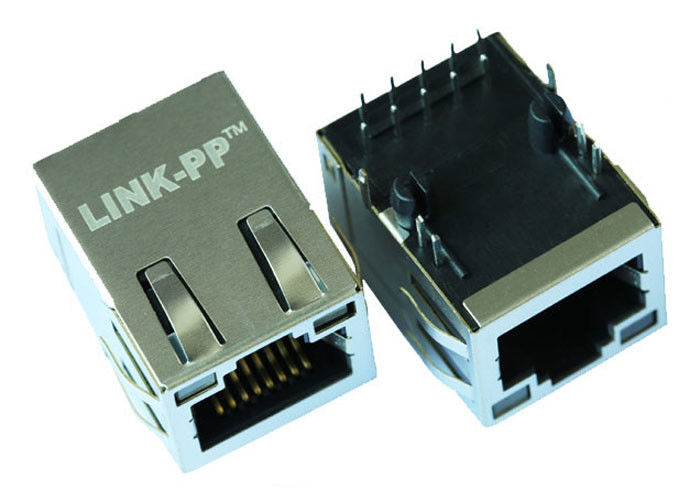

Large Image :  HR915350C Tab Up Modular Jacks RJ45 10 Pin Shielded With LEDs LPJG16515A4NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: HR915350C

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: HR915350C Mass Production: LPJG16515A4NL
Original Munafactuer: LINK-PP Application: Gigabyte Networking
Termination: Solder LEDs: Optional
Type: DIP / Side Entry

HR915350C Tab Up RJ45 Modular Jack 10Pin Shielded with Leds LPJG16515A4NL​

Quick Details

1.RJ45 1X1 RJ45 Female Jack Tab-up
2.Through Hole
3.10/100/1000 Base-T
4.Contact Area : Gold Flash



MAG., REVERSE LATCH , LED optional, EMI-finger Optional.



5.Designing Model: 【HR915350C】

6.Mass Production Model:【LPJG16515A4NL】




Description

Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics, Orange&Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJG16515A4NL​
Tyco Part Number HR915350C
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow&Green/Yellow&Green LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4.What is your delivery time?

Usually within 2-3 working days

5.What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
