|Apllication:||10/100 Base-T(x)||Original Munafactuer:||LINK-PP|
|Mail Customer:||Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics||File:||PDF/3D/ISG/Stp/Step/Datasheet|

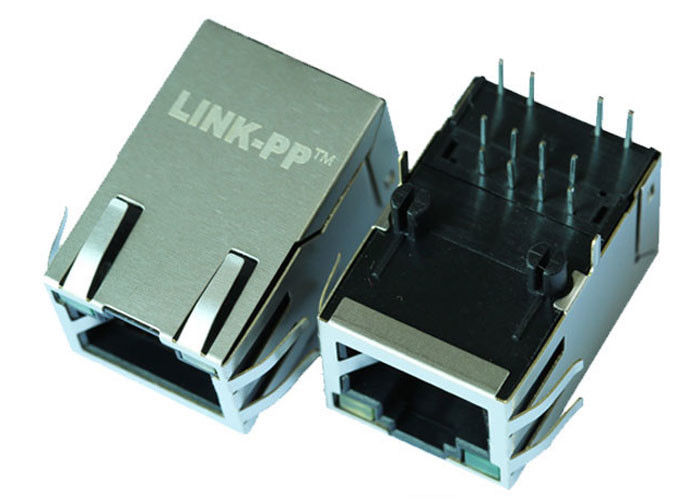

|Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up,RoHS|
|LINK-PP Part Number||LPJ9011KHNL|
|Other Part Number||RJMG16112D101ER|
|Contact Mating Area Plating||GOLD 6u"/15u"/30u"|
|Cores per Port||4|
|Number of Ports||1X1|
|PCB Mount Angle||SIDE ENTRY|
|Package Height (mm)||13.40|
|Package Length (mm)||25.60|
|Package Width (mm)||16.80|
|Pin Type||THT SOLDER|
|RoHS Compliant||YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION|
|Shield EMI Tabs||WITH|
|Temperature||- 40 TO + 85℃|
|Turns Ratio RX||1CT:1CT|
|Turns Ratio TX||1CT:1CT|
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•Active Environmental Policy
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Q:Can I have samples for testing quality?
A:Yes,you can huy some samples of any our products for testing quality and market
Q:What is delivery time if we place an order?
A:it depends order quantities. Usually,we can deliver goods within 3-5 working days for small orders,for more QTY.order,let’s confirm when you place offical order.
Q:Do you accept OEM/ODM?
A:We Support OEM/ODM Service:pls don’t hesitate to tell us your ideas
Q:Can I have my own logo on the products?
Yes, you can put your logo on the products with a required order quantity. Please just send us the information of your Logo.
Q:Does your products meet CE/ROHS requirements?
Yes, the goods with CE/ROHS certification approved to hold quality assurance.
As a manufacturer, we can ensure the delivery time according to the formal contract.
The effective purchasing and production departments enable us to delivery the goods in time and after-sales services departments will promise that try our best to solve all problem within 24 hours.
