LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000

China LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000 supplier
LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000 supplier LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000 supplier

Large Image :  LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-Up LEDs 48025-4000

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 48025-4000

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specification: 48025-4000 Part No: LPJ1014AHNL
Ethernet: 1x10/100Mbps Indicator: G-Y LEDs
Mounting: R/A Shield Samples: Available Free

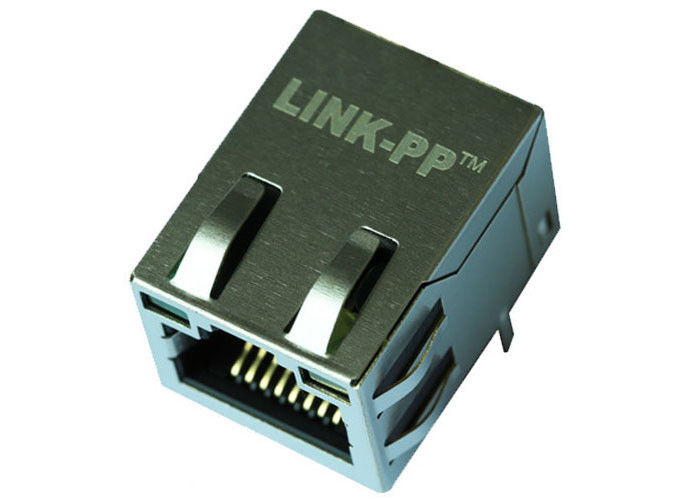

LPJ1014AHNL Magnetic RJ45 Jack 10/100Base-T Latch-up LEDs 48025-4000
  • 1x Fast Ethernet (10/100) : LPJ1014AHNL
  • 8P8C Rj45 Magnetic Connector 48025-4000
  • Cross Equivalent 48025-4000 Pin to Pin Replace Cost-Effective
  • 0℃ TO 70℃ : LPJ1014AHNL
Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJ1014AHNL
X Multiple Part Number XRJH-01D-4-D12-170
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.530
Package Height (mm) 13.45
Package Length (Inches) 0.994
Package Length (mm) 25.25
Package Width (Inches) 0.636
Package Width (mm) 16.150
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test:1500Vrms
