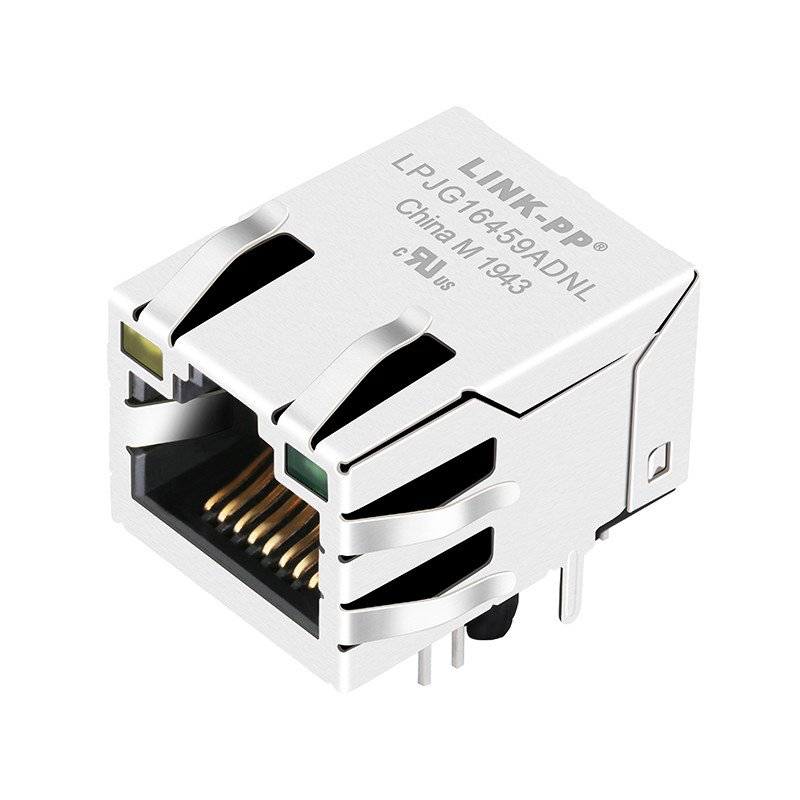

JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL

China JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL supplier
JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL supplier JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL supplier

Large Image :  JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JXD1-0025NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Features: Board Lock Specifications: JXD1-0025NL
P/N: LPJG16459ADNL Schematic: 8 Coils, 1CT:1CT,1CT:1CT
LEDs: Yellow-Green Samples: Available

JXD1-0025NL RJ45 Magjack Connector Through Hole 10/100/1000 Base-T LPJG16459ADNL

Part StatusActive
Connector TypeRJ45
Number of Ports1
Number of Rows1
Applications10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board0.543" (13.80mm)
LED ColorYellow - Green
Number of Cores per Jack8
ShieldingShielded, EMI Finger
FeaturesBoard Guide
Tab DirectionUp
Contact MaterialPhosphor Bronze
Contact FinishGold
Operating Temperature-40°C ~ 85°C
Contact Finish Thickness30.0µin (0.76µm)
Shield MaterialBrass
Housing MaterialThermoplastic

JXD1-0025NL RJ45 Modular Jack Through Hole 10/100/1000 Base-T LPJG16459ADNL


Product Warranty

1. Guarantees 100% compliance CE,Rohs
2. Lenth:Custom.
3. Molded-strain relief construction for flexible movement, durability, and fit.
4. Reduces cross talk and interference with aluminum undermold contacts

Packaging & Shipping

1. any items want to order. Please contact us. And confirm the order details and lead time.
2. Terms of Shipment:
Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed.
3. Shipping Companies: We support shipment by "HK post" "China post" "EMS" "DHL" "UPS" "FEDEX" "TNT" "SF"”, if you have your own express account that's would be very simple. If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help
4.Packing could be PE bag or Blister Card, depend on what product you ordered

Our Services

1. OEM/EDM service
2. Fast delivery
3. Most of the payment are accepted
4. Design and produce goods according to clinet's requirement.


Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer since 1997.
2. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from
small order.
3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
4. What is your delivery time?
Usually within 2-3 working days
5. What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
6. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
