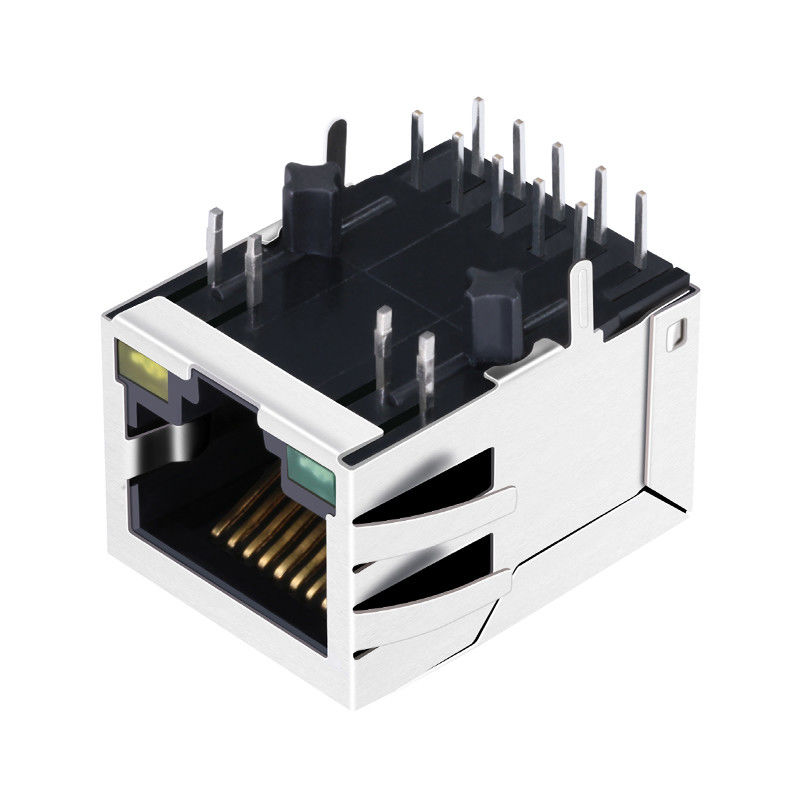

2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port

2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port
2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port 2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port

Large Image :  2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JKM-2500NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Part Number: JKM-2500NL Cross RF: LPJG0934-8GENL
Speed: 2.5G Port: Single
Manufacturer: LINK-PP
High Light:

stacked rj45 connectors

,

shielded rj45 plugs

JKM-2500NL Single Port 2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL



LINK-PP Part Number LPJP4320HENL
Application-Lan ETHERNET(Non PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes YES
LED Option Green/Yelllow/
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 2.5G Base-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port 0



Packaging & Delivery:

• Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.

• We can do the packing according to the customer's requirement, but the price is different.

• Port: Shenzhen/Hongkong/Guangzhou

Main Export Markets:

• Australasia

• Central/South America

• Eastern Europe

• Mid East/Africa

• North America

• Western Europe

• Asia

Successful Customer:

Texas Instruments

LINK-PP is the preferred supplier of TI.

Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0

You will look at our logo "LINK-PP" on BeagleBone Board.



2.5G Magnetic RJ45 Modular Jack LPJG0934-8GENL JKM-2500NL Single Port 1



FAQ



1. Are you the real manufacturer?

Yes. We are the real manufacturer since 1997.

2. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from

small order.

3. Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

4. What is your delivery time?

Usually within 2-3 working days

5. What is your payment way?

T/T, L/C, D/P,MoneyGram,Western Union and Paypal.

6. Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.
