Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 95009-7881
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Part Number: |
95009-7881 |
Connector Type: |
RJ11 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO +85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
95009-7881 |
Connector Type: |
RJ11 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO +85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Description

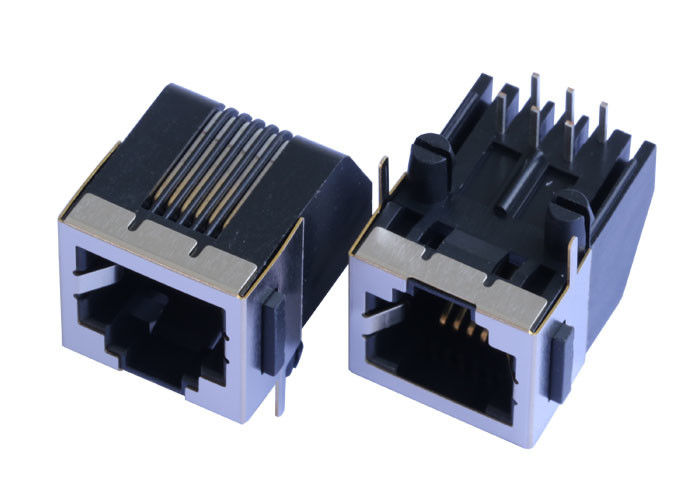

| Shielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE171-1NNL |
| Molex Part Number | 95009-7881 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.594 |
| Package Height (mm) | 15.10 |
| Package Length (Inches) | 0.811 |
| Package Length (mm) | 20.60 |
| Package Width (Inches) | 0.600 |
| Package Width (mm) | 15.24 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | RJ45 without Magnetics |
| Temperature | -40 TO 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
20 Years Experience
Our company since 1997 RJ45 network connector production in th past 20 years,only focus on RJ45 network connector design and development and production and sales.
OEM Services
For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
FAQ:
Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4: What payment method do you accept?
A4: T/T(Bank transfer), Western Union, Money Gram, PayPal.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
