Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 95009-7441
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Part Number: |
95009-7441 |
Connector Type: |
RJ11 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO +85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
95009-7441 |
Connector Type: |
RJ11 |
PIN Type: |
THT Solder |
Orientation: |
90～ Angle (Right) |
Temperature: |
-40 TO +85 |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Description

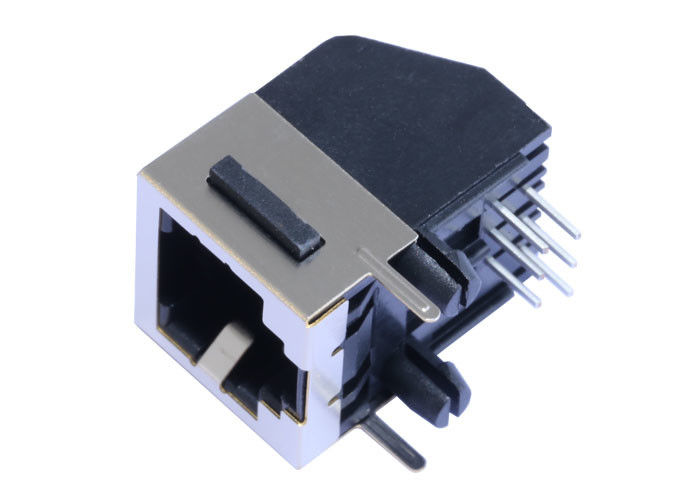

| Shielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE1700NNL |
| Molex Part Number | 95009-7441 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.630 |
| Package Height (mm) | 16.00 |
| Package Length (Inches) | 0.541 |
| Package Length (mm) | 13.75 |
| Package Width (Inches) | 0.810 |
| Package Width (mm) | 20.57 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | RJ45 without Magnetics |
| Temperature | -40 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
