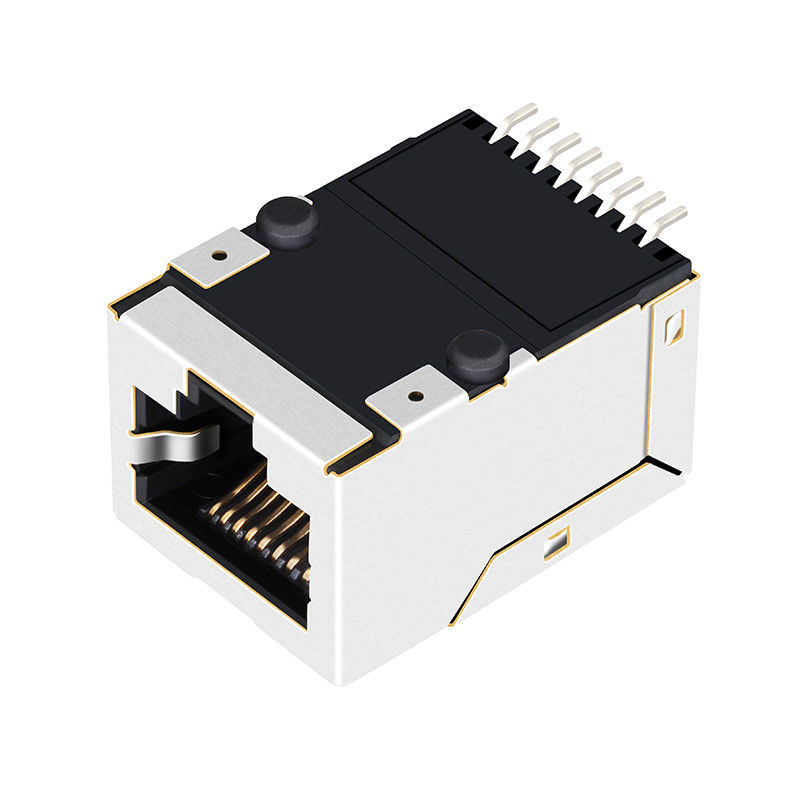

JXD6-1100NL Surface Mount RJ45 Connector Tab Up 10/100Base-T Ethernet LPJ19511DNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: LPJ19511DNL

Payment & Shipping Terms

Minimum Order Quantity: 600 PCS

Price: Supportive& Discount

Packaging Details: 150 pcs/reel,6 Reel/Caron,35*35*35 cm, 9KGS(900 pcs) /Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

JXD6-1100NL

,

SMT RJ45 Connector

,

RJ45 Connector Tab Up

Original:
JXD6-1100NL
Equivalent:
LPJ19511DNL
Package:
Tape&Reel
Apllication:
10/100Mbps
Munafactuer:
LINK-PP
Samples:
Available Free
Original:
JXD6-1100NL
Equivalent:
LPJ19511DNL
Package:
Tape&Reel
Apllication:
10/100Mbps
Munafactuer:
LINK-PP
Samples:
Available Free
JXD6-1100NL Surface Mount RJ45 Connector Tab Up 10/100Base-T Ethernet LPJ19511DNL
JXD6-1100NL Surface Mount RJ45 Connector Tab Up 10/100Base-T Ethernet LPJ19511DNL





SMT 1x1 Port RJ45 Magjack Connector with 10/100Base-T Integrated Magnetics,Without LED,Tab Down,RoHS
LINK-PP Part Number LPJ19511DNL
Other Part Number JXD6-1100NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Without LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.864
Package Length (mm) 21.95
Package Width (Inches) 0.640
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
