JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL

China JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL supplier
JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL supplier JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL supplier

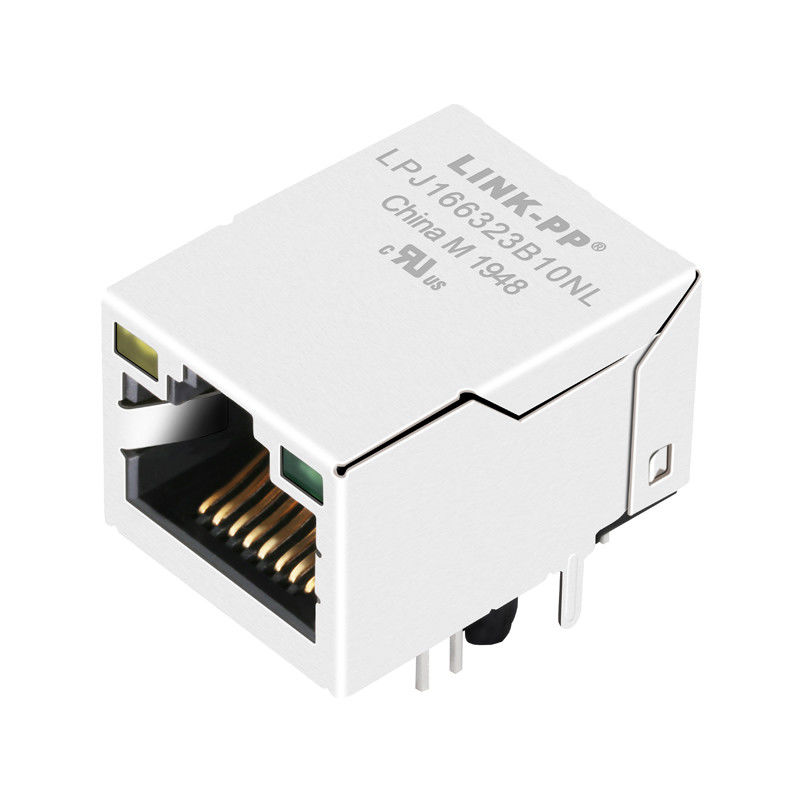

Large Image :  JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: JXD1-0009NL

Payment & Shipping Terms:

Minimum Order Quantity: 50/500/5000
Price: Supportive
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock or 30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Bel Spec: JXD1-0009NL Ethernet: 10/100 Base-T
Samples: Available RJ45 Connector: 1X1 With POE
File: PDF/3D/ISG/Stp/Step/Datasheet LED: Yellow/Green LED

JXD1-0009NL Single Port POE RJ45 10/100 Base-T Without Shield EMI Tabs LPJ166323B10NL





LINK-PP Part Number LPJ166323B10NL
Other Part Number JXD1-0009NL
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes YES
LED Option Yellow / Green
Latch TAB Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.529
Package Height (mm) 13.45
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…



LINK-PP Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Successful Customer:

• Texas Instruments

LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.



JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL

Factory

JXD1-0009NL Single Port POE RJ45 Connector Without Shield EMI Tabs LPJ166323B10NL



FAQ



Q: How long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days

USB Series: 7~15 days

Connector: 7~15 days

Q: How can I get quotation?

A: It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
