Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 2250030-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specifications: |
2250030-1 |
Ethernet: |
10/100 Magnetic |
Latch: |
Tab Up |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |
LED: |
Green&Yellow/Green&Yellow |
Specifications: |
2250030-1 |
Ethernet: |
10/100 Magnetic |
Latch: |
Tab Up |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |
LED: |
Green&Yellow/Green&Yellow |

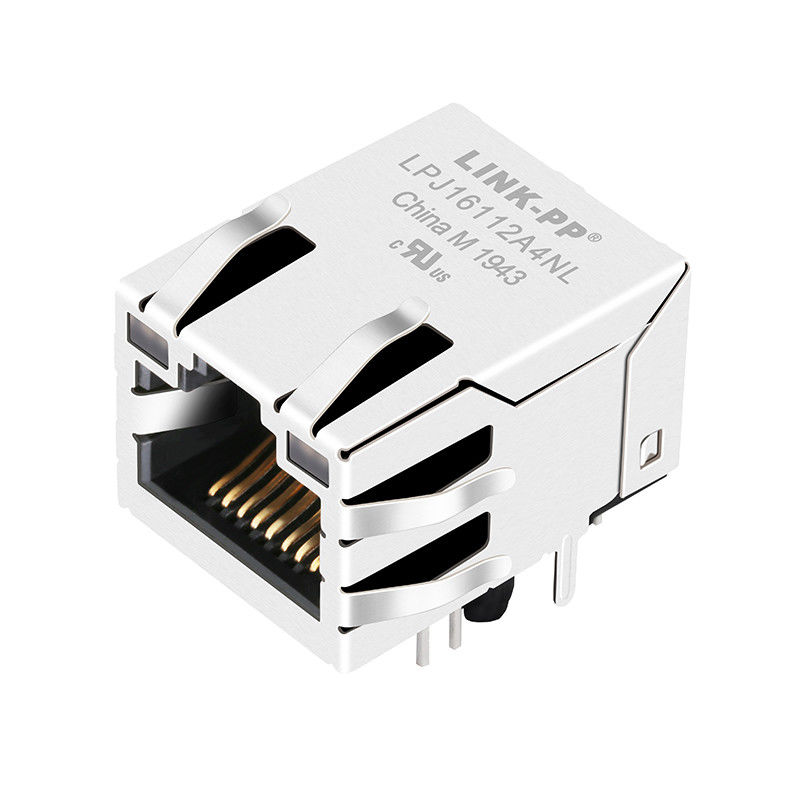

2250030-1 Single Port RJ45 Connector With 10/100 Base-T LPJ16112A4NL
|
Shielded 1x1 Ethernet Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics ,Green&Yellow/Green&Yellow LED,Tab UP,RoHS |
|
|
LINK-PP Part Number |
LPJ16112A4NL |
|
Cross Part Number |
2250030-1 |
|
Application-Lan |
ETHERNET(NoN PoE) |
|
AutomDX |
YES |
|
Bst Circuit |
YES |
|
Configuration RX |
T,C |
|
Configuration TX |
T,C |
|
Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
|
Cores per Port |
4 |
|
Diodes |
NO |
|
LED Option |
Green/Yellow LEDs |
|
Latch |
TAB UP |
|
Number of Ports |
1X1 |
|
PCB |
FR4 |
|
PCB Mount Angle |
SIDE ENTRY |
|
PCB Retaining Post |
T POST |
|
Package Height (Inches) |
0.530 |
|
Package Height (mm) |
13.45 |
|
Package Length (Inches) |
0.837 |
|
Package Length (mm) |
21.25 |
|
Package Width (Inches) |
0.628 |
|
Package Width (mm) |
15.95 |
|
Pin Type |
THT SOLDER |
|
RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|
Search |
YES |
|
Shield EMI Tabs |
With |
|
Speed |
10/100 Base-T |
|
Temperature |
-40 TO + 85℃ |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
FAQ
1. Q: Can you do OEM project?
A: Yes, no problem. Custom logo and custom packing will be no problem for us. For example, custom artworks and patterns printing on phone cases, and OEM brand rj45 connector, lan transformer etc. with your own logos.
2. Q: Is quality guaranteed? How LINK-PP do QC?
A: Definitely, quality is the most important factor to maintain a company's reputation, so it's a must! Product Quality is always strictly controlled by our QC staff members before delivery. It is promised and gaurateed! If you have time and would like to visit our factory before ordering, you will be highly welcome!
3. Q: Is it safe to deal with LINK-PP?
A: Of course, LINK-PP has been a verified gold supplier of Alibaba, has exported all over the world. LINK-PP Is The Preferred Manufacturer Of Intel TI and Samsung.
4. Q: Can LINK-PP provide the best service?
A: Of couse. LINK-PP has a great sales team, professional and helpful, always try the best to offer the best service to you!
5. Q: are you accept Paypal?
A: For the first cooperation, you can pay through Escrow or Paypal if worry about the safty.
