3-1840898-5 Stacked RJ45 2X1 10/100 Base-T Side Entry Mounting LPJG17102A96NL

China 3-1840898-5 Stacked RJ45 2X1 10/100 Base-T Side Entry Mounting LPJG17102A96NL supplier
3-1840898-5 Stacked RJ45 2X1 10/100 Base-T Side Entry Mounting LPJG17102A96NL supplier 3-1840898-5 Stacked RJ45 2X1 10/100 Base-T Side Entry Mounting LPJG17102A96NL supplier

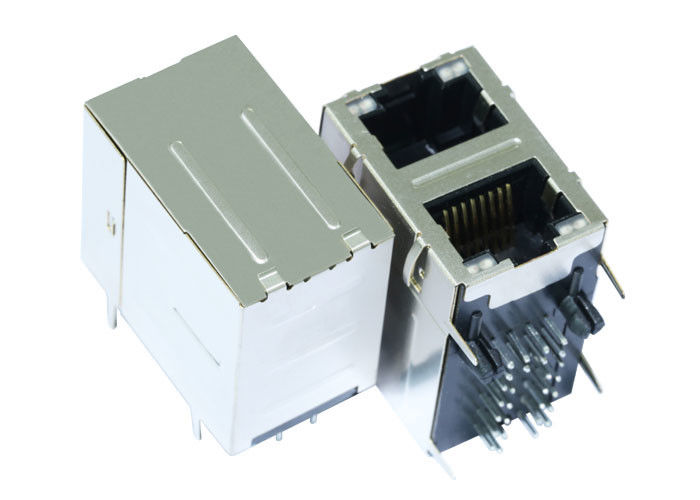

Large Image :  3-1840898-5 Stacked RJ45 2X1 10/100 Base-T Side Entry Mounting LPJG17102A96NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: 3-1840898-5

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: 3-1840898-5 Port: 2x1 Female Rj45
Magnetics: 10/100/1000 Base-T LED: GREEN / YELLOW&GREEN
Mounting: Side Entry (Right Angle) Cross Ref: LPJ17402AENL

3-1840898-5 Stacked RJ45 2x1 With 10/100 Base-T Connector LPJG17102A96NL





  • 3-1840898-5 2x1 Ports Gigabit Female Socket Rj45

  • RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.

  • Size same as RJ-45 connector to save PCB board space.

  • Reduced EMI radiation to improve EMI performance.

  • Compliance with ROHS requirements.

  • Operating temperature range: -40℃ to +85℃.



2X1 Ethernet RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics, Green/Yellow&Green LED,Tab Up/Tab Down,RoHS

LINK-PP Part Number

LPJG17102A96NL

Other Part Number

3-1840898-5

Application-Lan

ETHERNET(NoN PoE)

AutomDX

YES

Bst Circuit

YES

Configuration RX

T,C

Configuration TX

T,C

Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Cores per Port

8

Diodes

NO DIODES

LED Option

Green/Yellow&Green

Latch

TAB UP/TAB DOWN

Number of Ports

2X1

PCB

FR4

PCB Mount Angle

SIDE ENTRY

PCB Retaining Post

T POST

Package Height (Inches)

1.059

Package Height (mm)

26.90

Package Length (Inches)

1.331

Package Length (mm)

33.80

Package Width (Inches)

0.661

Package Width (mm)

16.80

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Search

YES

Shield EMI Tabs

WITH

Speed

10/100/1000 BASE-T

Temperature

-40 TO + 85℃

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1CT
