LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL

China LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL supplier
LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL supplier LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL supplier LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL supplier

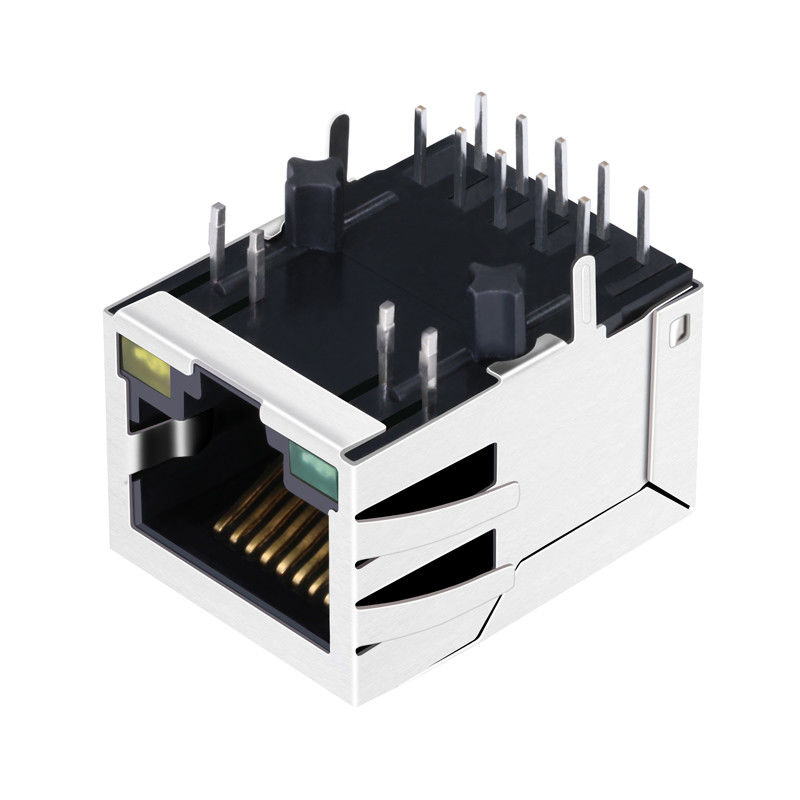

Large Image :  LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: JXD0-0015NL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive&Discount
Packaging Details: 60PCS/Tray,20 Trays=37*30*30CM=1200PCS=11KG/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: JXD0-0015NL Analogue Part: JXD0-0015NL
Ethernet: 1000 Base-T LAN Indicator: Green / Yellow
Mounting: R/A Shield Samples: Available Free

LPJG4933GENL One Port RJ45 Jack With 1000 Base-T Magnetics JXD0-0015NL




Part StatusActive
Connector TypeRJ45
Number of Ports1
Number of Rows1
Applications5G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board0.524" (13.30mm)
LED ColorGreen/Yellow
Number of Cores per Jack8
ShieldingShielded, EMI Finger
FeaturesBoard Lock
Tab DirectionDown
Contact Material-
Contact FinishGold
Operating Temperature-40°C ~ 85°C


LPJG4933GENL One Port Magnetic RJ45 Jack R/A Shield Mounting JXD0-0015NL
FEATURE :
◎ RoHS Compliant
◎ Fully shielded magnetics protect data from internally generated digital noise
◎ Reduces the overall length of the signal path for improved common mode performance
◎ Implements full common mode termination scheme with used and unused twisted
pairs
◎ Meets IEEE802.3 Baseline Wander Compensation specification
◎ Integrates high voltage capacitor to chassis ground
◎ Supports all major transceivers with matched turns ration and complete integration of
specified termination
◎ Design for 2.5Gbase-tx transmission over UTP-5 cable
◎ Storage TEMP. range:-40℃ to +85℃
◎ Primary OCL inductance: 350μH MIN. at 100KHz/0.1Vrms with 8mA DC bias
◎ With the LED lamp



Applications:

VME, VPX, and VXI Controllers and Processors

Vacuum Fluorescent Displays

Data Acquisition Computer Boards

Point of Sale and Kiosk Computers



Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time


Refund and Replacement
1. If the part you received is certify be defective,you can apply to get replace or get refund.
2. If return ,buyer need to return the goods within 30days.
3. The return goods could not be broken.
4. Pls notify us within 5days if the parts is defective.


Payment Information
We accept T/T & Western Union & PayPal & Alipay & WeChat pay.
