LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination

China LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination supplier
LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination supplier LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination supplier LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination supplier LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination supplier

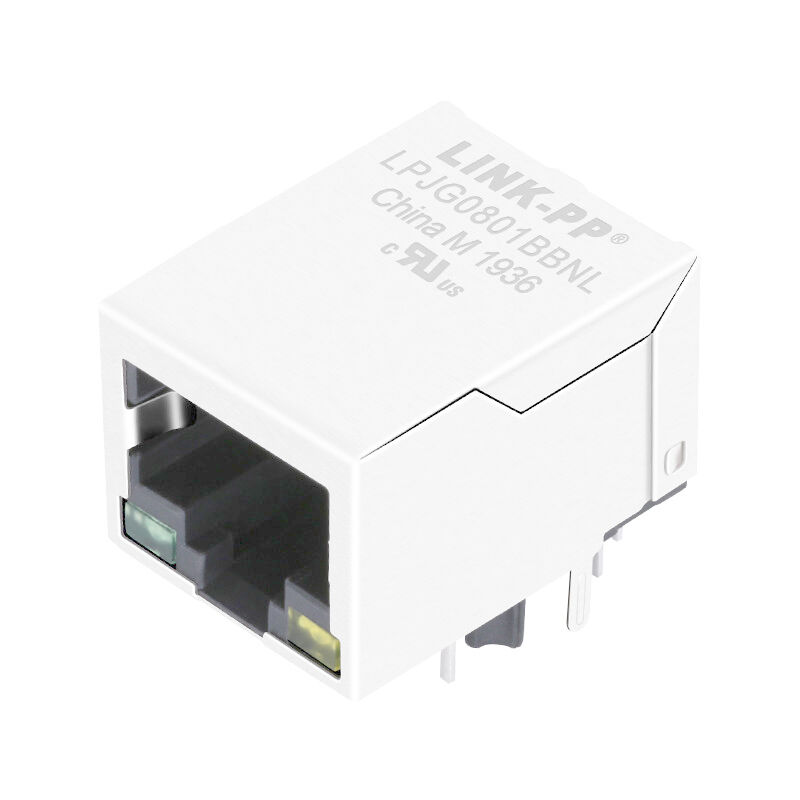

Large Image :  LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: RG11884-FA125-L02

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specifications: RG11884-FA125-L02 P.N: LPJG0801BBNL
Application: 10/100/1000Base-T Termination: Solder
LEDs: Optional Type: DIP / Side Entry

LPJG0801BBNL 1000 Base-t Magnetic RJ45 Jack 10P8C RG11884-FA125-L02


1. 10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications
2. 1X1, INT. MAG., LED, REVERSE LATCH
3. LA1S09-43LF
4. LPJG0801BBNL



LED optional, EMI-finger Optional.
LPJG0801BBNL 1000 Base-T Magnetic RJ45 Jack 10P8C RG11884-FA125-L02 Solder Termination 0

Description

Single Port RJ-45 Female Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0801BBNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

2600 staff,
100% test
Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
