Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 48F-19DDDP2NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
48F-19DDDP2NL |
Cross&Datasheet: |
LPJG0820G4NL |
Apllication: |
10/100/1000Base-T |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
Standard: |
ISO9001,SGS,UL,CE,REACH |
Part Number: |
48F-19DDDP2NL |
Cross&Datasheet: |
LPJG0820G4NL |
Apllication: |
10/100/1000Base-T |
Original Munafactuer: |
LINK-PP |
Project Application: |
NETWORK INTERFACE CARD |
Standard: |
ISO9001,SGS,UL,CE,REACH |

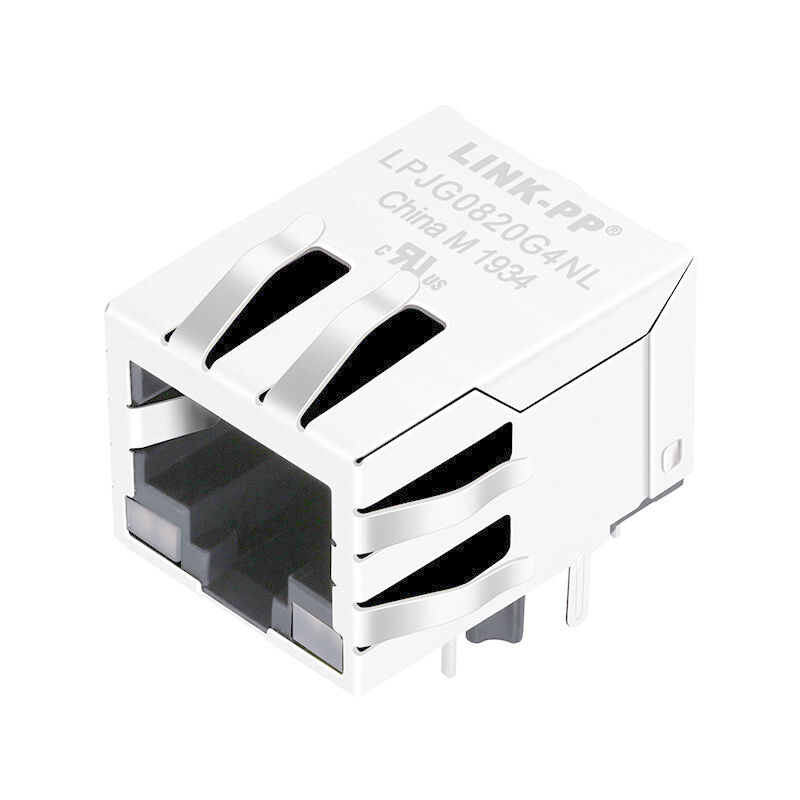

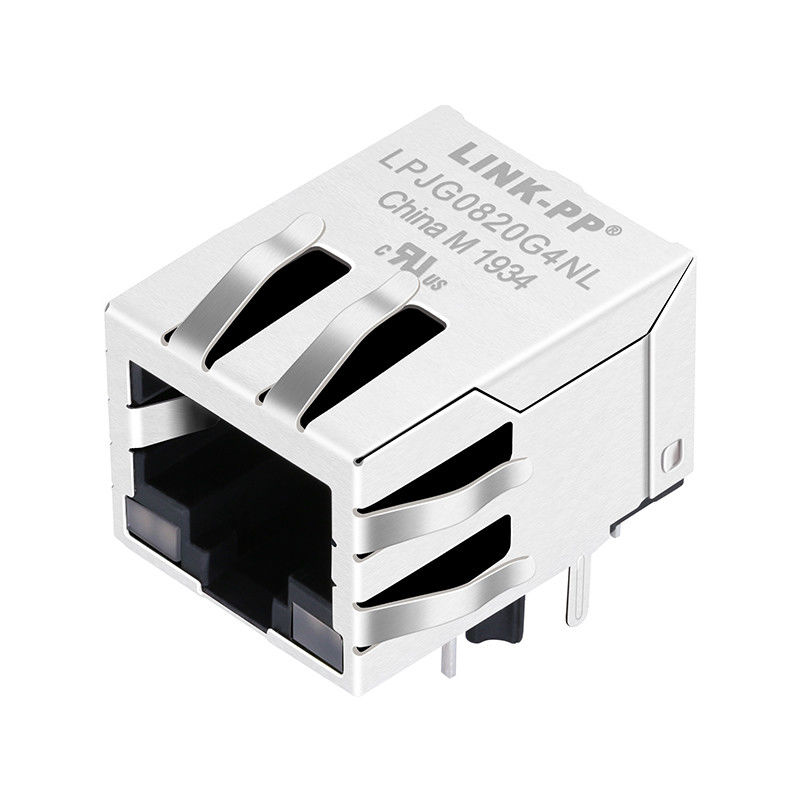

Cross 48F-19DDDP2NL RJ45 With Integrated Magnetics LPJG0820G4NL
| RJ45 Connector with 1000 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJG0820G4NL |
| YDS Part Number | 48F-19DDDP2NL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN&YELLOW/GREEN&YELLOW |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.528 |
| Package Height (mm) | 13.40 |
| Package Length (Inches) | 0.838 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Product Lines
Now has 22 production lines, using IE technology to analyze the process statistics, continuously improve the production process and technology, improve production efficiency.
QC Profile
> ISO9001:2008 Quality management system
> ISO14001:2004 Environmental management system
> RoHS Environmental protection certification
> CE certification
> FCC certification
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After-sales service: cargo tracking, goods application follow-up, etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional switches factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the rj45 jack are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
