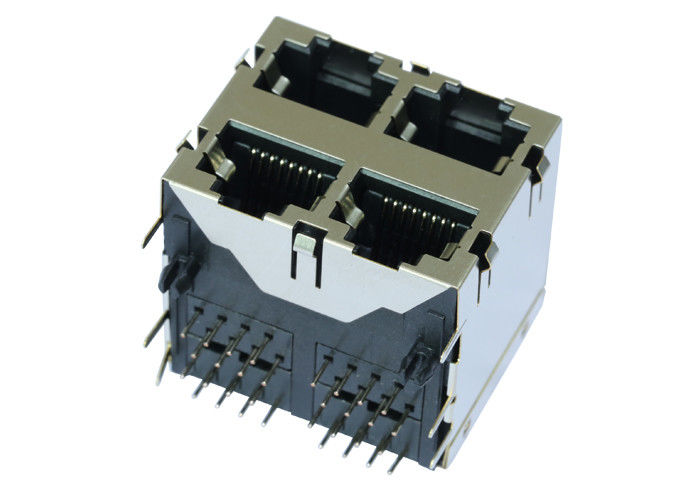

LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1

China LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1 supplier
LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1 supplier LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1 supplier

Large Image :  LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 5569260-1

Payment & Shipping Terms:

Minimum Order Quantity: 200 / 1000 / 5000
Price: Supportive & 60% Discounted
Packaging Details: Tray & Cartons
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: 5569260-1 Family: 4 Port Magnetic Rj45
Mounting: Through Hole Files: PDF / IGS / Datasheet
Standard: IEEE802.3af/ Ieee802.3at Brand: LINK-PP

LPJE107XCNL Stacked 2x2 Double Port RJ45 Magjack Jack Shielded 5569260-1





Description



2X2 Ethernet RJ45 Connector without Integrated Magnetics ,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJE107XCNL
Other Part Number TS3022S-288BR
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.996
Package Height (mm) 25.30
Package Length (Inches) 1.114
Package Length (mm) 28.30
Package Width (Inches) 1.231
Package Width (mm) 31.26
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed -
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User



Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

20 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer

LPJE107XCNL Stacked 2X2 Double Port Small RJ45 Connector Shielded 5569260-1

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
