Home > products > Magnetic RJ45 Jack > 7499611420 Low Profile 2.5G / 5G / 10G RJ45 Jack With LEDS LPJK9461-8A97NL

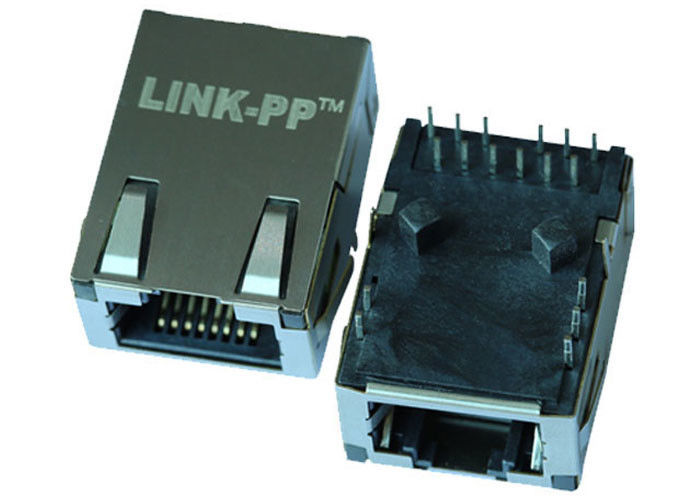

7499611420 Low Profile 2.5G / 5G / 10G RJ45 Jack With LEDS LPJK9461-8A97NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 7499611420

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Specifications:
7499611420
Part No:
LPJK9461-8A97NL
Mounting:
THT
Family:
Low Profile 1GE Connector
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Certification:
ISO 9001,ISO 14001,UL,SGS,REACH
Specifications:
7499611420
Part No:
LPJK9461-8A97NL
Mounting:
THT
Family:
Low Profile 1GE Connector
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Certification:
ISO 9001,ISO 14001,UL,SGS,REACH
7499611420 Low Profile 2.5G / 5G / 10G RJ45 Jack With LEDS LPJK9461-8A97NL
7499611420 10G Base-T Low-Profile RJ45 Jack With LEDS LPJK9461-8A97NL





Single Port Low Profile RJ45 Jack with 100 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJK9461-8A97NL
Tyco Part Number 7499611420
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow&Green/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.445
Package Height (mm) 11.30
Package Length (Inches) 0.946
Package Length (mm) 24.04
Package Width (Inches) 0.700
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES
Search YES
Shield EMI Tabs WITH
Speed 10G BASE-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



7499611420 Low Profile 2.5G / 5G / 10G RJ45 Jack With LEDS LPJK9461-8A97NL 0
