JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T

China JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T supplier
JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T supplier JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T supplier

Large Image :  JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JXD0-0019NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: JXD0-0019NL Mass Production: LPJxxxxxNL
Original Munafactuer: LINK-PP Application: 10/100/1000 Base-T
Termination: Solder LEDs: Green - Yellow

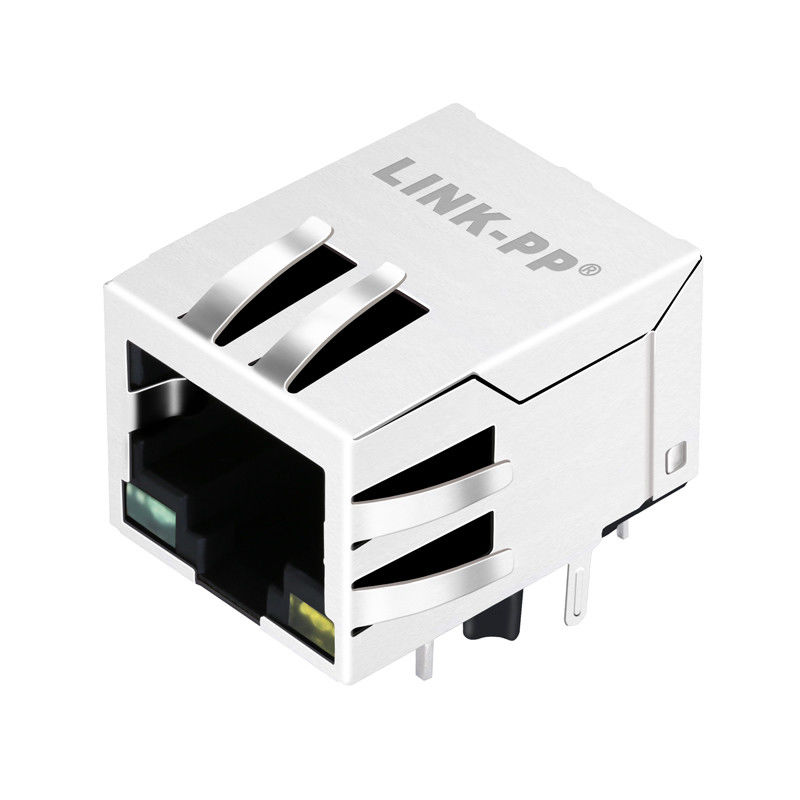

JXD0-0019NL Single Port RJ45 Modular Jack Integrated 1000 Base-T Magnetic





Connector Type

RJ45



Number of Ports

1



Number of Rows

1



Applications

10/100/1000 Base-T, AutoMDIX



Mounting Type

Through Hole



Orientation

90° Angle (Right)



Termination

Solder



Height Above Board

0.537" (13.65mm)



LED Color

Green - Yellow



Number of Cores per Jack

8



Shielding

Shielded



Features

Board Lock



Tab Direction

Down



Contact Material

Phosphor Bronze



Contact Finish

Gold



Operating Temperature

-40°C ~ 85°C



Contact Finish Thickness

30.0µin (0.76µm)



Shield Material

Brass



Housing Material

Thermoplastic



JXD0-0019NL Single Port Modular Jack Connector , RJ45 Ethernet Connector Integrated 1000 Base-T

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

Q: Are you a factory or a trading company?

A: We are factory direct sales, have quality assurance, and can also meet your customization requirements.

Q: Can I get a free sample?

A: Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.

Q: How long is your delivery?

A: 5-7 days in case of stock, normal is 2-3 weeks delivery

Q: What are your payment terms?

A: TT/LC/DP/DA/Paypal/Western Union/MoneyGram
