Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 5-2301996-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Spec: |
5-2301996-1 |
Category: |
Rj45 1x2 Ethernet Connector |
Manufacturer: |
LINK-PP |
Orientation: |
90～ Angle (Right) |
Shielding: |
Shielded, No EMI Finger |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
5-2301996-1 |
Category: |
Rj45 1x2 Ethernet Connector |
Manufacturer: |
LINK-PP |
Orientation: |
90～ Angle (Right) |
Shielding: |
Shielded, No EMI Finger |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Description

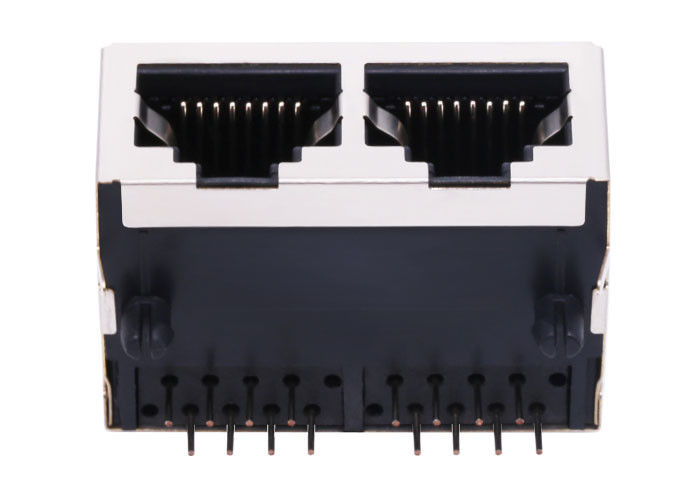

| Shielded 1x2 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics ,Without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Tyco Part Number | 2301996-1 / 5-2301996-1 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Without LEDs |
| Latch | TAB UP |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 0.846 |
| Package Length (mm) | 21.50 |
| Package Width (Inches) | 1.220 |
| Package Width (mm) | 31.00 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
