Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 0845-2D1T-H5-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
0845-2D1T-H5-F |
Analogue PN: |
LPJ17633ADNL |
Family: |
Rj45 With Transformer Inside |
I/O: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
Termination: |
Solder |
Spec: |
0845-2D1T-H5-F |
Analogue PN: |
LPJ17633ADNL |
Family: |
Rj45 With Transformer Inside |
I/O: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
Termination: |
Solder |

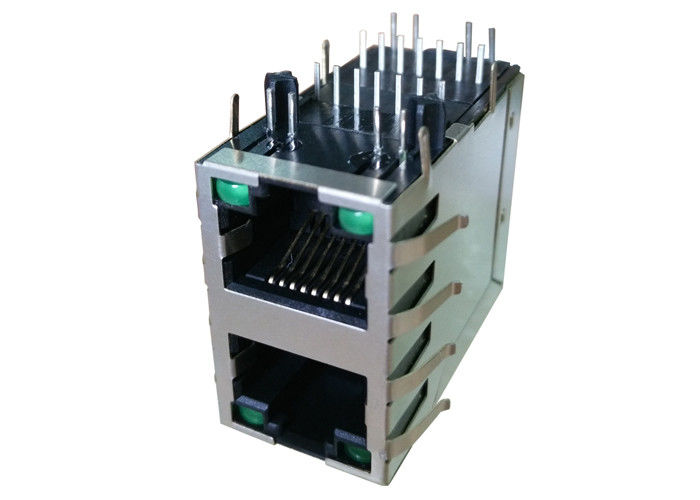

| 2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJ17633ADNL |
| Bel fuse Part Number | 0845-2D1T-H5-F |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.059 |
| Package Height (mm) | 26.90 |
| Package Length (Inches) | 1.331 |
| Package Length (mm) | 33.80 |
| Package Width (Inches) | 0.661 |
| Package Width (mm) | 16.80 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Application:
PCMCIA Networking Cards
Vacuum Fluorescent Displays
Computer Printers and Plotters
CompactPCI and PXI Products
Why Choose Us
1. Quality Control
Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers say and are always looking for ways to improve the quality of our products through continuous improvement.
2. OEM Ability
We have built stable and long-term cooperate relationshilp with supermarkets,we can also provide ODM, OEM and Agent services to our customers over the world.
3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our vehicles become standard with more features than anyone else, we also offer more optional parts for our vehicles than anyone else.
4. Good Warranty
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.
