Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 0895-2S2R-FM
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
0895-2S2R-FM |
Port: |
2x2 Female Rj45 |
Magnetics: |
10/100 |
Mounting: |
Side Entry (Right Angle) |
Cross Ref: |
LPJG27043A4NL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
0895-2S2R-FM |
Port: |
2x2 Female Rj45 |
Magnetics: |
10/100 |
Mounting: |
Side Entry (Right Angle) |
Cross Ref: |
LPJG27043A4NL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

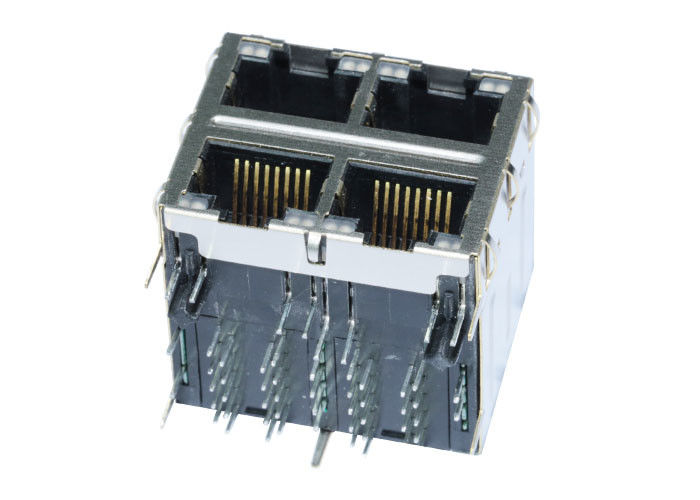

| 2X2 RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics & PoE+, Green&Yellow/Green&Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJG27043A4NL |
| Belfuse Part Number | 0895-2S2R-FM |
| Application-Lan | ETHERNET(PoE+) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Yellow/Green&Yellow |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.015 |
| Package Height (mm) | 25.79 |
| Package Length (Inches) | 1.508 |
| Package Length (mm) | 38.30 |
| Package Width (Inches) | 1.228 |
| Package Width (mm) | 31.18 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 BASE-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
