LPJG27037A4NL 10/00 Base - T 2X1 Ports Magnetic RJ45 Jack With LED 0879-2C2R-Y4

China LPJG27037A4NL 10/00 Base - T 2X1 Ports Magnetic RJ45 Jack With LED 0879-2C2R-Y4 supplier
LPJG27037A4NL 10/00 Base - T 2X1 Ports Magnetic RJ45 Jack With LED 0879-2C2R-Y4 supplier LPJG27037A4NL 10/00 Base - T 2X1 Ports Magnetic RJ45 Jack With LED 0879-2C2R-Y4 supplier

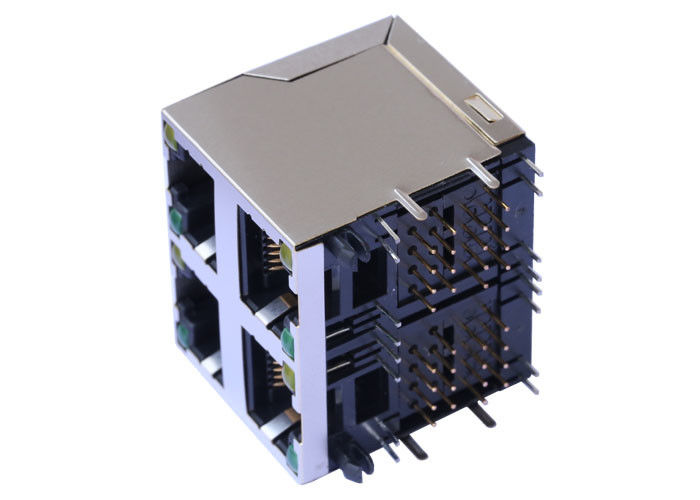

Large Image :  LPJG27037A4NL 10/00 Base - T 2X1 Ports Magnetic RJ45 Jack With LED 0879-2C2R-Y4

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 0879-2C2R-Y4

Payment & Shipping Terms:

Minimum Order Quantity: 200/500 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000000/Month
Contact Now
Detailed Product Description
Designe PN#: 0879-2C2R-Y4 Samples: Available Free
Orientation: 90° Angle (Right) Interface: 10/00Base-T, AutoMDIX
LED: Flexible File: PDF/3D/ISG/Stp/Step/Datasheet

LPJG27037A4NL 10 / 00 Base - T 2x1 Ports Stacked RJ45 Jack With LED 0879-2C2R-Y4





2X2 Port RJ45 Female Connector with 1000 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJG27037A4NL
Belfuse Part Number 0879-2C2R-Y4
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN&YELLOW/GREEN&YELLOW
Latch TAB UP/TAB DOWN
Number of Ports 2X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
