2-406549-5 Single Port RJ45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL

China 2-406549-5 Single Port RJ45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL supplier
2-406549-5 Single Port RJ45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL supplier 2-406549-5 Single Port RJ45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL supplier

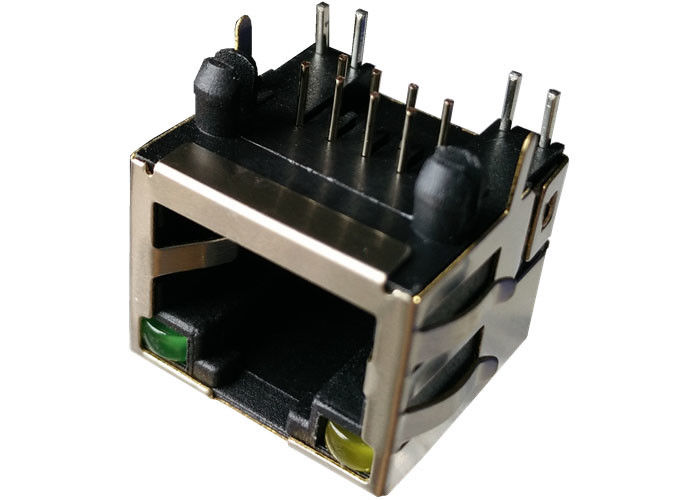

Large Image :  2-406549-5 Single Port RJ45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: 2-406549-5

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specifications: 2-406549-5 P.N: LPJE101AWNL
Port: 1x1 Family: Cat5/5e
LEDs: Green / Green Samples: Available

2-406549-5 Rj45 Connectors With LED 8P8C Shielded Thru - Hole LPJE101AWNL





Unshielded 1x1 Port RJ45 Female Connector without Integrated Magnetics,Green/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJE101AWNL
Tyco Part Number 2-406549-5
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port -
Diodes NO DIODES
LED Option Green/Green LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.516
Package Height (mm) 13.1
Package Length (Inches) 0.620
Package Length (mm) 15.75
Package Width (Inches) 0.640
Package Width (mm) 16.26
Pin Type THT SOLDER
RoHS Compliant YES
Search YES
Shield EMI Tabs With
Speed RJ45 without magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



PCB JACK SPECIFICATION

1. Insulation Resistance:500MΩMIN @ 500 VDC
2. Withstanding Voltage:AC1000V 50Hz or 60Hz 1min.
3. Durability:600 Mating Circles MIN.
4. Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
5. (1)Storage:  -40℃ to +85℃
    (2)Opertion: -40℃ to +85℃
    (3)Wave solder temperture:230℃ to 250℃,5~10 Sec.



FAQ

Q1: Can provide a sample test?

A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.

Q2: How about the MOQ?

A: NO MOQ , 1pcs OK . Small order welocome.

Q3: What’s the lead time?

A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: Can make customized products ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q5: What kind of payment do accept ?

A: ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
