LPJG0860H4NL RJ45 Shielded Connector Tab Down 1000 Base-T Magnetic S11-ZZ-0159

China LPJG0860H4NL RJ45 Shielded Connector Tab Down 1000 Base-T Magnetic S11-ZZ-0159 supplier
LPJG0860H4NL RJ45 Shielded Connector Tab Down 1000 Base-T Magnetic S11-ZZ-0159 supplier LPJG0860H4NL RJ45 Shielded Connector Tab Down 1000 Base-T Magnetic S11-ZZ-0159 supplier

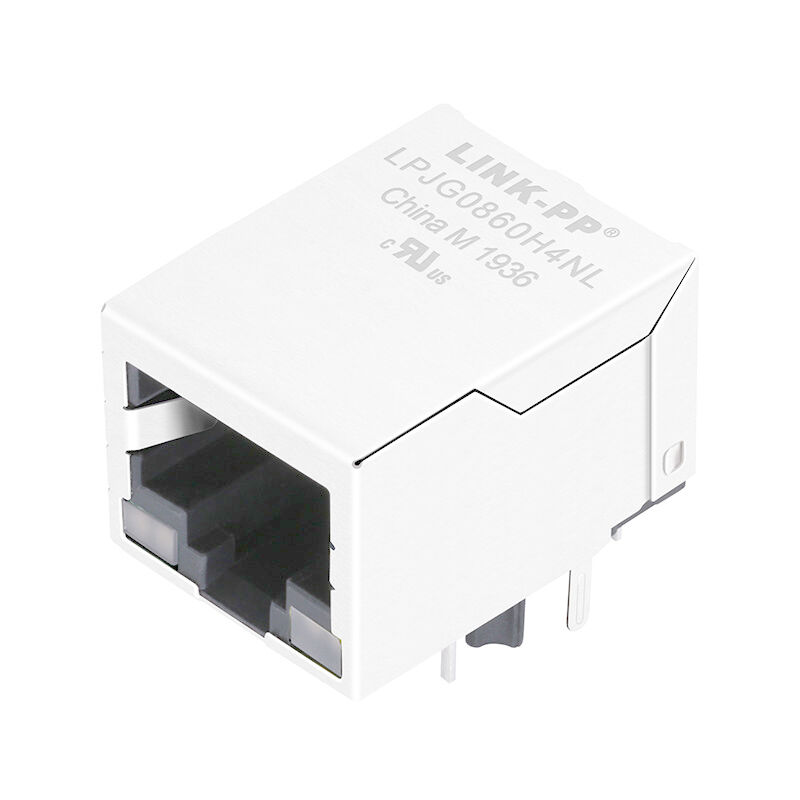

Large Image :  LPJG0860H4NL RJ45 Shielded Connector Tab Down 1000 Base-T Magnetic S11-ZZ-0159

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: S11-ZZ-0159

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive & Competitive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: S11-ZZ-0159 Termination: Solder
Latch: Tab Down Samples: Available 1-5 Pcs
File: PDF/3D/ISG/Stp/Step/Datasheet Sample: Free

LPJG0860H4NL Tab Down 1000 Base-T Magnetic RJ45 Modular Jack S11-ZZ-0159





Single Port RJ-45 Modular Connector with 10/100/1000 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJG0860H4NL
Other Part Number S11-ZZ-0159
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN&Yellow/Green&YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.524
Package Height (mm) 13.30
Package Length (Inches) 0.837
Package Length (mm) 21.25
Package Width (Inches) 0.627
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100/1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
