Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JDFU11691861
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specifications: |
JDFU11691861 |
Ethernet: |
10/100 Mbps |
Samples: |
Free |
Latch: |
Tab Up |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |
Specifications: |
JDFU11691861 |
Ethernet: |
10/100 Mbps |
Samples: |
Free |
Latch: |
Tab Up |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Cores: |
4 |

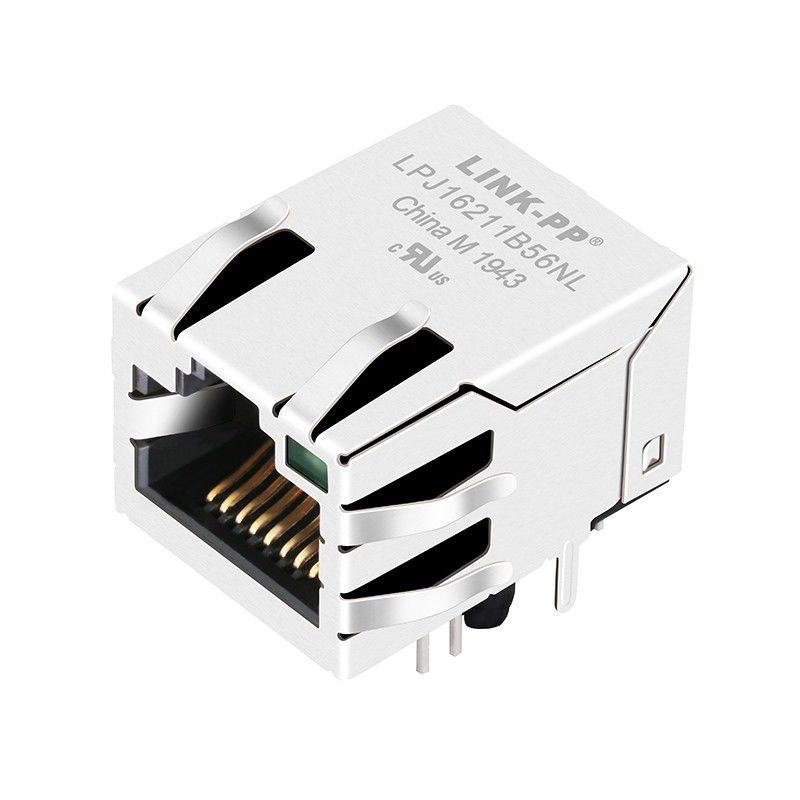

| Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics ,Green LEDs,Tab UP,RoHS | |
| LINK-PP Part Number | LPJ16211B56NL |
| Other Part Number | JDFU11691861 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO |
| LED Option | Green |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.530 |
| Package Height (mm) | 13.45 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.628 |
| Package Width (mm) | 15.95 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES |
| Search | YES |
| Shield EMI Finger | Without |
| Speed | 10/100 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer since 1997.
2. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from
small order.
3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
4. What is your delivery time?
Usually within 2-3 working days
5. What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
6. Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
