Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: XRJK-U-04-8-8-V-9T4-ZHO
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
PN: |
XRJK-U-04-8-8-V-9T4-ZHO |
Pin To Pin: |
LPJE104N89NL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
XRJK-U-04-8-8-V-9T4-ZHO |
Pin To Pin: |
LPJE104N89NL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

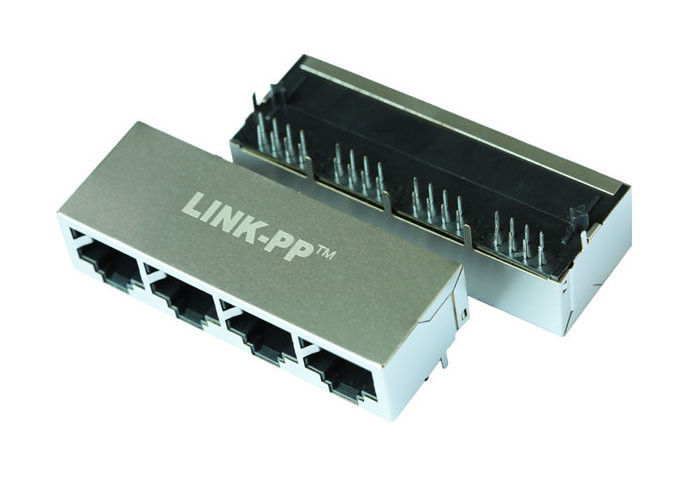

| Shielded 1x4 Port RJ45 Magjack Connector , without Integrated Magnetics, Green&Yellow/Green LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE104N89NL |
| X Multiple Part Number | XRJK-U-04-8-8-V-9T4-ZHO |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | - |
| Diodes | NO DIODES |
| LED Option | Green&Yellow/Green LEDs |
| Latch | TAB Down |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.508 |
| Package Height (mm) | 12.9 |
| Package Length (Inches) | 0.815 |
| Package Length (mm) | 20.70 |
| Package Width (Inches) | 2.303 |
| Package Width (mm) | 58.49 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | - |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
FAQ:
Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4: What payment method do you accept?
A4: T/T(Bank transfer), Western Union, Money Gram, PayPal.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
